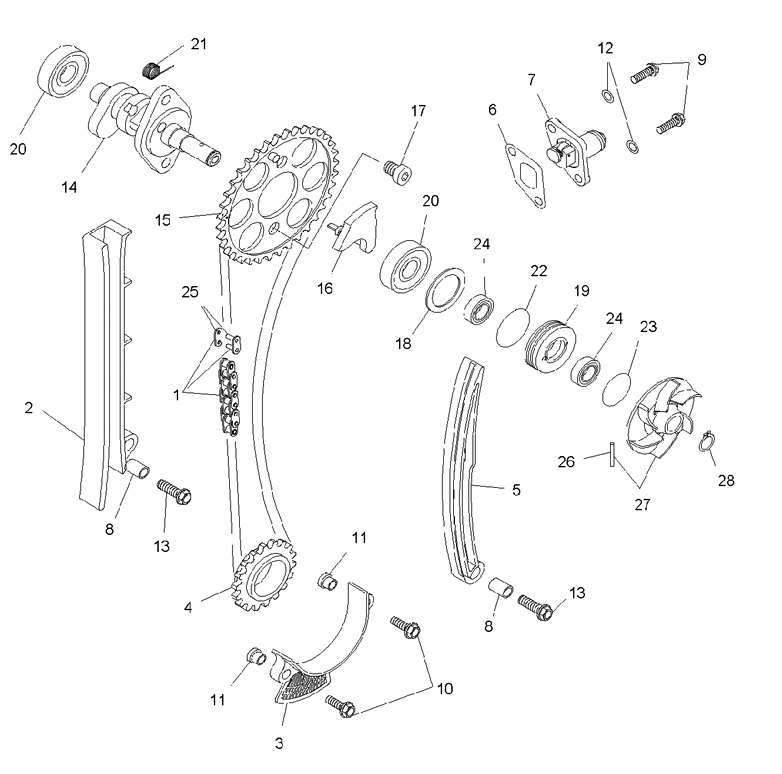

TIMING SYSTEM для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
13222158 CHAIN-CAM DRIVE,96LINKSCHAIN-CAM DRIVE,96LINKS
-
23021845 GUIDE-CAM TIMING CHAINGUIDE-CAM TIMING CHAIN
-
33021847 GUIDE-CAM CHAIN,LOWERGUIDE-CAM CHAIN,LOWER
-
43222157 SPROCKET-CAM CHAIN DRIVE 18TSPROCKET-CAM CHAIN DRIVE 18T
-
51203519 TENSIONER-CAM CHAINTENSIONER-CAM CHAIN
-
65813173 GASKET-CAM CHAIN TENSIONERGASKET-CAM CHAIN TENSIONER
-
71203522 ASM-CAM CHAIN TENSIONER,ASM-CAM CHAIN TENSIONER,
-
85135837 BUSHING-SPACER 6.1X8.2X13.1MMBUSHING-SPACER 6.1X8.2X13.1MM
-
97518723 SCR-M6X20 HX/FL 8MM HEADSCR-M6X20 HX/FL 8MM HEAD
-
107518732 SCR-M5X16 HX/FL 8MM HEADSCR-M5X16 HX/FL 8MM HEAD
-
115135843 BUSHING-SPACER 5.2X7X10X7.7MMBUSHING-SPACER 5.2X7X10X7.7MM
-
127556415 WASHER-COPPER DIN7603 6X10X1MMWASHER-COPPER DIN7603 6X10X1MM
-
137518736 SCR-M6X25 HX/FL 8MM HEADSCR-M6X25 HX/FL 8MM HEAD
-
143021848 CAMSHAFT-590/5521,CAMSHAFT-590/5521,
-
153222159 SPROCKET-CAMSHAFTDRIVENSPROCKET-CAMSHAFTDRIVEN
-
163021849 SHAFT-AUTODECOMPRESSIONSHAFT-AUTODECOMPRESSION
-
177518741 SCR-M8X10 SOCHD DIN7984SCR-M8X10 SOCHD DIN7984
-
187556414 WASHER-26.7X34X1.3MMWASHER-26.7X34X1.3MM
-
195135846 CARRIER-WATER PUMP SEALCARRIER-WATER PUMP SEAL
-
203514581 BEARING-BALL DPDRV 6201BEARING-BALL DPDRV 6201
-
217043303 SPRING-AUTO DECOMSPRING-AUTO DECOM
-
225413252 O-RING,29.1X1.6MM NBR70O-RING,29.1X1.6MM NBR70
-
235413251 O-RING 25.12X1.78MM NBR70O-RING 25.12X1.78MM NBR70
-
245413306 SEAL-SHAFT 10X18X4 VITONSEAL-SHAFT 10X18X4 VITON
-
253222167 LINK-CONNECTOR,CAM CHAINLINK-CONNECTOR,CAM CHAIN
-
267661935 NEEDLE-ROLLER DIN5402 3X17.8MMNEEDLE-ROLLER DIN5402 3X17.8MM
-
275437029 IMPELLER-WATERPUMPIMPELLER-WATERPUMP
-
287710599 RING-SNAP,DIN0471 10X1MMRING-SNAP,DIN0471 10X1MM
