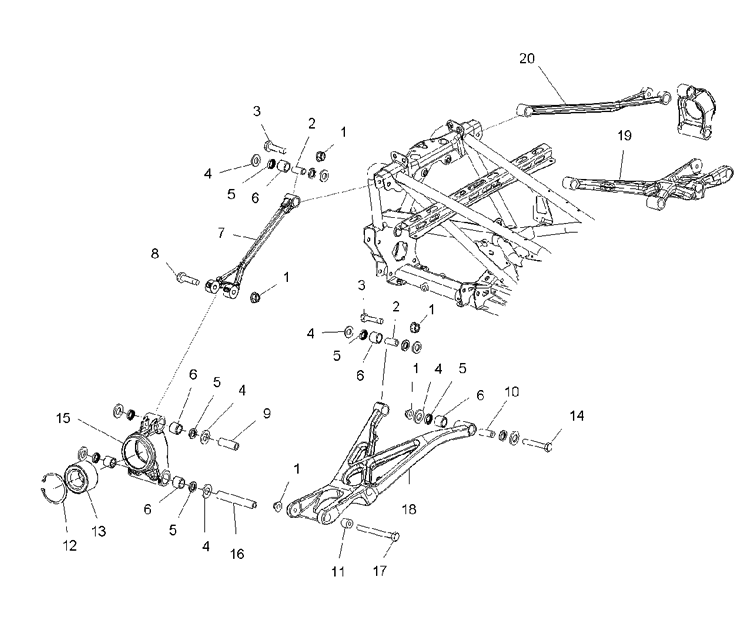

SUSPENSION - REAR для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
-
25334816 SHAFT-CONTROL ARM,INNER,1.38SHAFT-CONTROL ARM,INNER,1.38
-
37518563 BOLT-M10X1.25X60,HXFLG-OLIVE DBOLT-M10X1.25X60,HXFLG-OLIVE D
-
47556356 WASHER-THRUST,1.18 X.625 X.125WASHER-THRUST,1.18 X.625 X.125
-
53610125 SEALSEAL
-
63514542 BEARING-NEEDLEBEARING-NEEDLE
-
75136018 CONTROL ARM,UPPER, RIGHT HANDCONTROL ARM,UPPER, RIGHT HAND
-
87518560 BOLT-M10X1.25X95,HXFLG-OLIVE DBOLT-M10X1.25X95,HXFLG-OLIVE D
-
95335307 SHAFT-CONTROL ARM,OUTER,1.680SHAFT-CONTROL ARM,OUTER,1.680
-
105335366 SHAFT-CONTROL ARM,INNER,1.875SHAFT-CONTROL ARM,INNER,1.875
-
115334894 SLEEVE-FLOATSLEEVE-FLOAT
-
127710507 RING,RET.,2.500 INTERNALRING,RET.,2.500 INTERNAL
-
133514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
147518561 BOLT-M10X1.25X70,HXFLG-OLIVE DBOLT-M10X1.25X70,HXFLG-OLIVE D
-
155136016 CARRIER-BEARING,WHEELCARRIER-BEARING,WHEEL
-
165334820 SHAFT-BEARING CARRIER,WHEELSHAFT-BEARING CARRIER,WHEEL
-
177518858 BOLT-M10X1.25X145,HXFLG-OLV DBOLT-M10X1.25X145,HXFLG-OLV D
-
185136147 CONTROL ARM,LOWER, RIGHT HANDCONTROL ARM,LOWER, RIGHT HAND
-
195136146 CONTROL ARM,LOWER, LEFT HANDCONTROL ARM,LOWER, LEFT HAND
-
205136017 CONTROL ARM,UPPER, LEFT HANDCONTROL ARM,UPPER, LEFT HAND
