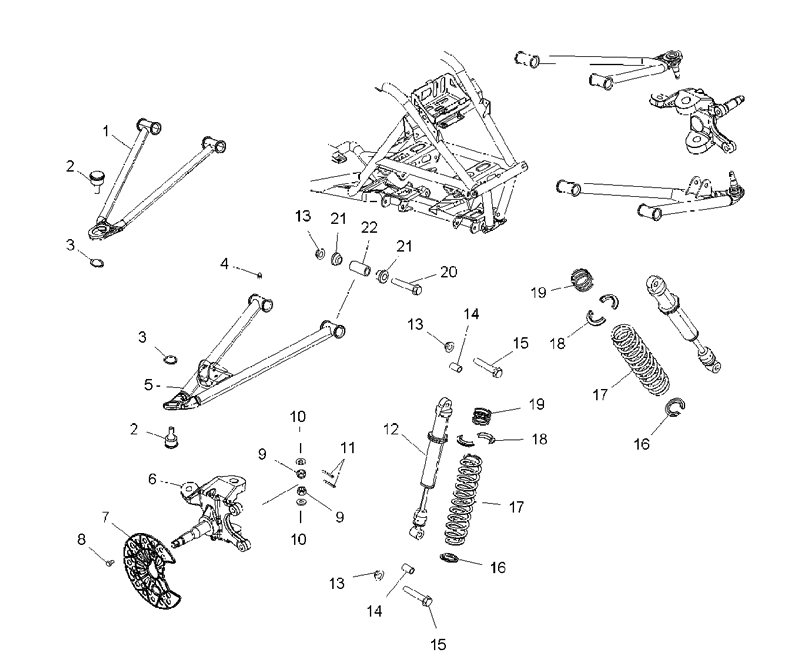

SUSPENSION- FRONT для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
11015697-385 WELD-A-ARM,UPPER, LEFT HAND,SLVRWELD-A-ARM,UPPER, LEFT HAND,SLVR
-
11015698-385 WELD-A-ARM,UPPER, RIGHT HAND,SLVRWELD-A-ARM,UPPER, RIGHT HAND,SLVR
-
27061141 BALLJOINT-M12X1.50BALLJOINT-M12X1.50
-
37710533 RING-RETAINER,EXTERNAL,1.188RING-RETAINER,EXTERNAL,1.188
-
47080433 FITTING,LUBRICATION,THREADED(10FITTING,LUBRICATION,THREADED(10
-
51015075-385 WELD-A-ARM,LOWER, LEFT HAND,SLVRWELD-A-ARM,LOWER, LEFT HAND,SLVR
-
51015076-385 WELD- A-ARM,LOWER, RIGHT HAND,SLVRWELD- A-ARM,LOWER, RIGHT HAND,SLVR
-
61823340 ASM-STEERING KNUCKLE, LEFT HANDASM-STEERING KNUCKLE, LEFT HAND
-
61823341 ASM-STEERING KNUCKLE, RIGHT HANDASM-STEERING KNUCKLE, RIGHT HAND
-
75436830 GUARD-DISC,INNERGUARD-DISC,INNER
-
87518441 SCR-#10-24 SHLDR-TORX-YSCR-#10-24 SHLDR-TORX-Y
-
97547336 NUT-M12X1.5,CASTLE-OLIVE DNUT-M12X1.5,CASTLE-OLIVE D
-
107556376 WASHER-.937X.501X.031,OLIVE DWASHER-.937X.501X.031,OLIVE D
-
117661203 PIN,COTTERPIN,COTTER
-
127043373 SHOCK,FRONT (SEE SUSPENSION, FRONT SHOCK PAGE FOR DETAILS)SHOCK,FRONT (SEE SUSPENSION, FRONT SHOCK PAGE FOR DETAILS)
-
137547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
-
145334876 SLEEVE-SHOCKSLEEVE-SHOCK
-
157518559 BOLT-M10X1.25X50,HXFLG-OLIVE DBOLT-M10X1.25X50,HXFLG-OLIVE D
-
165630580 RETAINER,SPRING,SLOTTEDRETAINER,SPRING,SLOTTED
-
177043197-293 SPRING-COMP,120#/IN,INDY REDSPRING-COMP,120#/IN,INDY RED
-
185436643 SPACER-SPRING,NYLONSPACER-SPRING,NYLON
-
197043227-293 SPRING-COMP,60#/IN,INDY REDSPRING-COMP,60#/IN,INDY RED
-
207518664 BOLT-M10X1.25X90,HXFLG-OLIVE DBOLT-M10X1.25X90,HXFLG-OLIVE D
-
215434575 BUSHING-A-ARMBUSHING-A-ARM
-
225135270 SHAFT-A-ARMSHAFT-A-ARM
