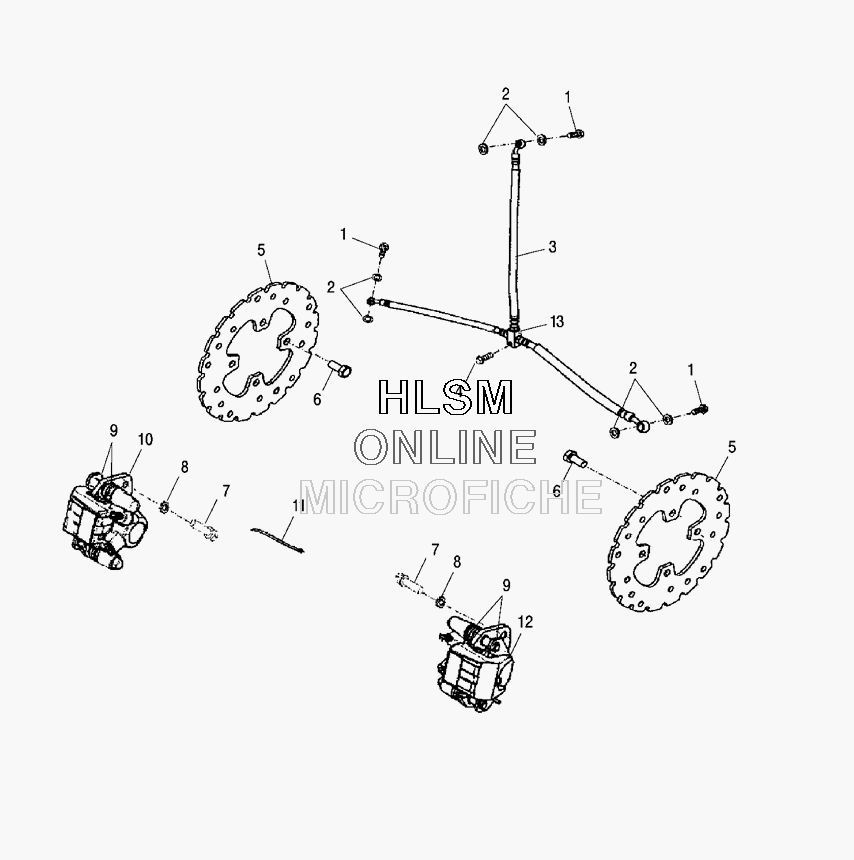

BRAKE - FRONT для Polaris PHOENIX 200 (A09PB250AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10452871 BOLT-BANJOBOLT-BANJO
-
20453313 WASHER-PLAINWASHER-PLAIN
-
30453011 LINE-BRAKE, FRONT, J/B CRIMPEDLINE-BRAKE, FRONT, J/B CRIMPED
-
40453354 BOLT-WASHER FACE, HEXBOLT-WASHER FACE, HEX
-
50453010 DISC-BRAKE, FRONTDISC-BRAKE, FRONT
-
60452904 BOLT-BRAKE DISCBOLT-BRAKE DISC
-
70453355 BOLT-FLANGE, HEX, W/SPRINGBOLT-FLANGE, HEX, W/SPRING
-
80452325 WASHER-FLATWASHER-FLAT
-
90453036 PAD, BRAKEPAD, BRAKE
-
100454240 HOUSINGHOUSING
-
110450559 STRAPSTRAP
-
120454239 HOUSINGHOUSING
-
130453204 JUNCTION BLOCK-BRAKEJUNCTION BLOCK-BRAKE
