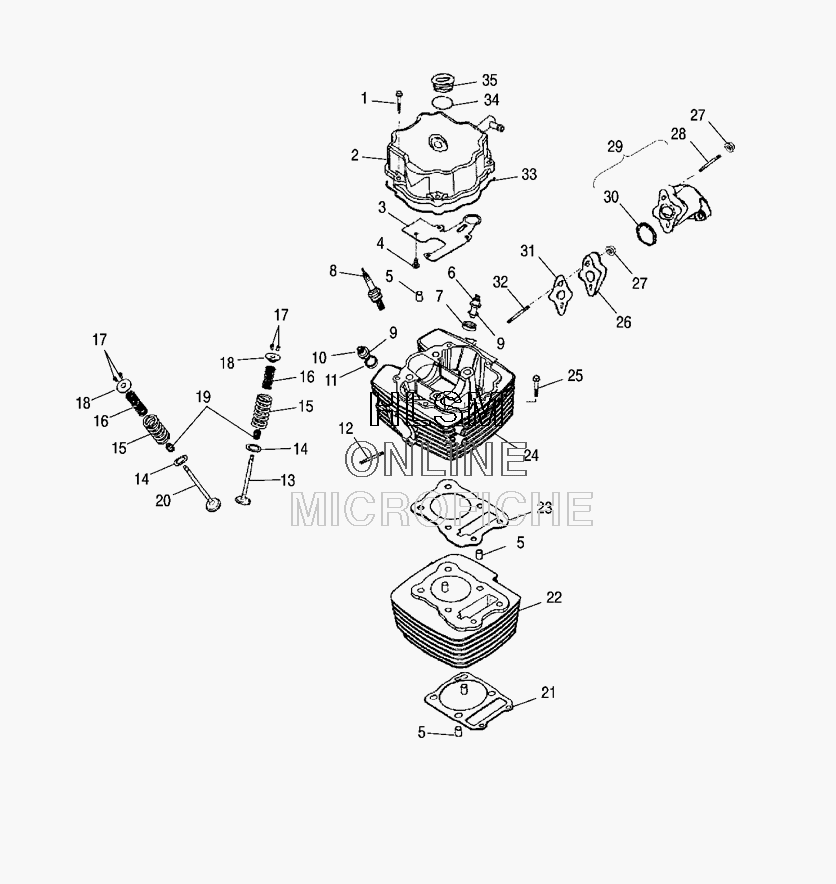

CYLINDER HEAD для Polaris PHOENIX 200 (A09PB250AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
-0454112 CYLINDER HEAD ASM.CYLINDER HEAD ASM.
-
10452400 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
20453750 COVER-CYLINDER HEADCOVER-CYLINDER HEAD
-
30453751 BREATHER-CRANKCASE, LOWERBREATHER-CRANKCASE, LOWER
-
40451766 SCREW-TAPPING, 4MMSCREW-TAPPING, 4MM
-
50450142 PIN-DOWELPIN-DOWEL
-
60452380 GUIDE-VALVE INTAKEGUIDE-VALVE INTAKE
-
70452378 SEAT-INTAKESEAT-INTAKE
-
80453034 PLUG-SPARK, CR6HSAPLUG-SPARK, CR6HSA
-
90452382 O-RINGO-RING
-
100452381 GUIDE-VALVE, EXHAUSTGUIDE-VALVE, EXHAUST
-
110452379 SEAT-EXHAUSTSEAT-EXHAUST
-
120452398 BOLT-STUDBOLT-STUD
-
130452383 VALVE, INTAKEVALVE, INTAKE
-
140452388 SEAT-VALVE, SPRING, OUTERSEAT-VALVE, SPRING, OUTER
-
150452385 SPRING-VALVE, OUTERSPRING-VALVE, OUTER
-
160452386 SPRING-VALVE, INNERSPRING-VALVE, INNER
-
170452389 CLIP-RETAINER (2)CLIP-RETAINER (2)
-
180452387 RETAINER-VALVE, SPRINGRETAINER-VALVE, SPRING
-
190452390 SEAL-VALVESEAL-VALVE
-
200452384 VALVE-EXHAUSTVALVE-EXHAUST
-
210452376 GASKET-CYLINDERGASKET-CYLINDER
-
220452375 CYLINDERCYLINDER
-
230452391 GASKET-CYLINDER HEADGASKET-CYLINDER HEAD
-
240452377 HEAD-CYLINDERHEAD-CYLINDER
-
250452401 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
260452404 INSULATOR-MANIFOLDINSULATOR-MANIFOLD
-
270450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
280452405 BOLT-STUDBOLT-STUD
-
290452311 INTAKE MANIFOLDINTAKE MANIFOLD
-
300452397 O-RINGO-RING
-
310452403 GASKET-MANIFOLDGASKET-MANIFOLD
-
320452399 BOLT-STUDBOLT-STUD
-
330452392 O-RING, HEAD COVERO-RING, HEAD COVER
-
340452394 O-RINGO-RING
-
350452393 CAP-HEAD COVERCAP-HEAD COVER
