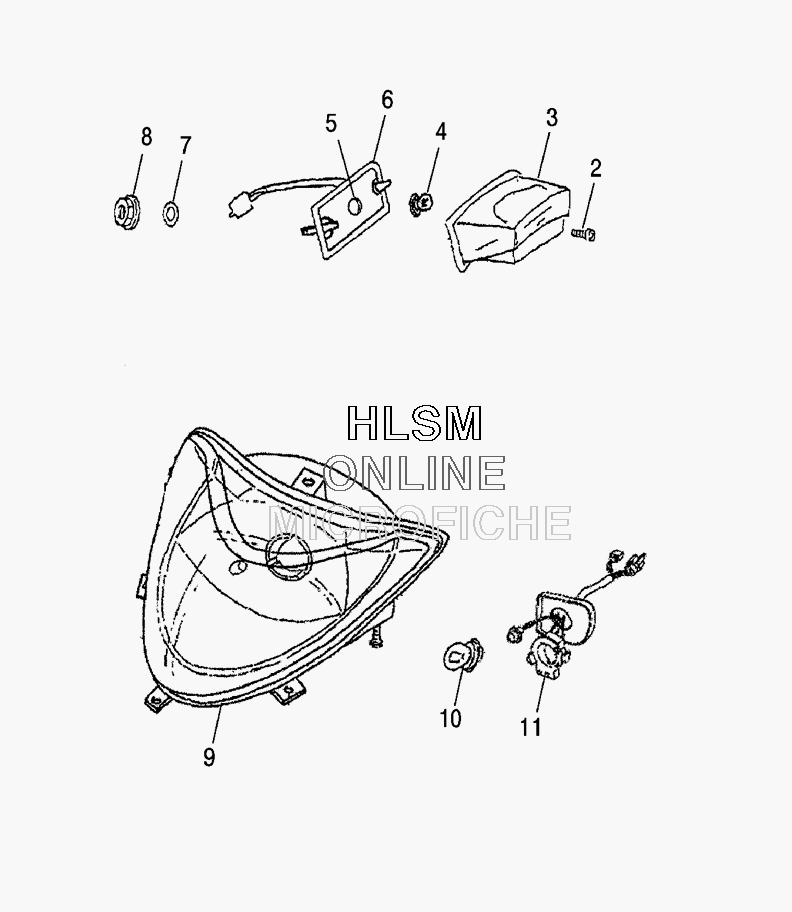

HEADLIGHT - TAIL LIGHT для Polaris PHOENIX 200 (A09PB250AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
-0452829 ASM-TAILLIGHT (INCL. 2-6)ASM-TAILLIGHT (INCL. 2-6)
-
20451801 TAPPING SCREW-PHILLIPS, PANTAPPING SCREW-PHILLIPS, PAN
-
30452995 LENS-TAIL LIGHTLENS-TAIL LIGHT
-
40452830 BULB-TAIL LIGHTBULB-TAIL LIGHT
-
50453483 SOCKET-TAILLIGHTSOCKET-TAILLIGHT
-
60451799 GASKET-TAIL LIGHTGASKET-TAIL LIGHT
-
70450041 WASHER-PLAINWASHER-PLAIN
-
80450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
90452723 LENS, HEADLIGHTLENS, HEADLIGHT
-
100453141 BULB-HEADLIGHT, PHX, QUAD, 2006BULB-HEADLIGHT, PHX, QUAD, 2006
-
110452725 SOCKET, HEADLIGHTSOCKET, HEADLIGHT
