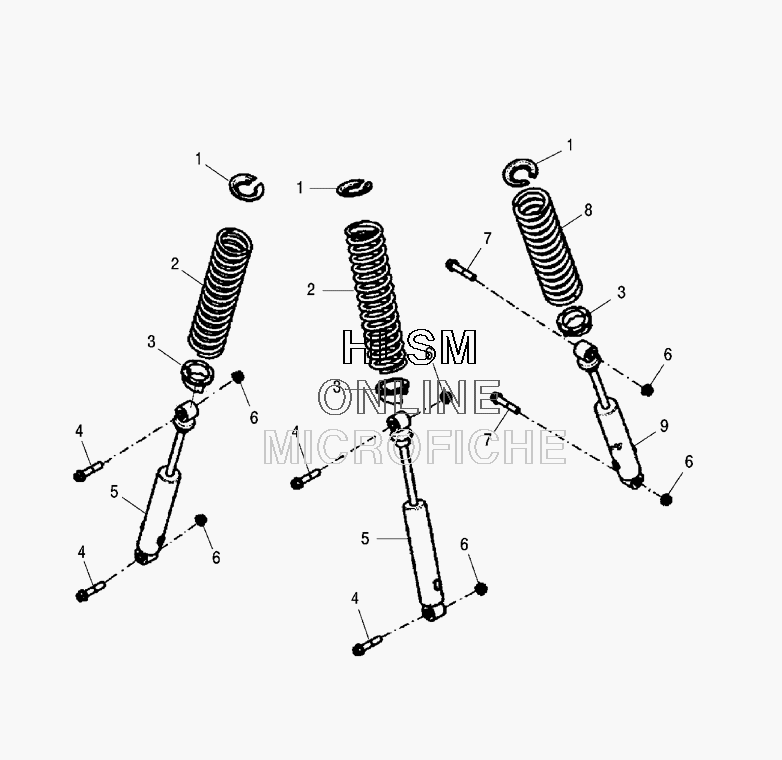

SUSPENSION - SHOCKS для Polaris PHOENIX 200 (A09PB250AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10453768 RETAINER-SPRINGRETAINER-SPRING
-
20452996-133 SPRING-FRT SUSP, 88LBS/IN, WHITE (STD)SPRING-FRT SUSP, 88LBS/IN, WHITE (STD)
-
20452652-133 SPRING-FRT SUSP, 106LBS/IN, YLW (OPT) (HEAVY)SPRING-FRT SUSP, 106LBS/IN, YLW (OPT) (HEAVY)
-
30453787 COLLAR-ADJUSTMENT, SHOCKCOLLAR-ADJUSTMENT, SHOCK
-
40450820 BOLT-WASHER, HXBOLT-WASHER, HX
-
50453788-067 SHOCK-FRONT, SUSPENSION, PHX, BLACKSHOCK-FRONT, SUSPENSION, PHX, BLACK
-
60450249 NUT-FLANGENUT-FLANGE
-
70452649 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
80453769-133 SPRING-REAR, SUSP, 240LBS/IN, WHTSPRING-REAR, SUSP, 240LBS/IN, WHT
-
90453789-067 SHOCK-REAR, SUSPENSION, PHX, BLACKSHOCK-REAR, SUSPENSION, PHX, BLACK
