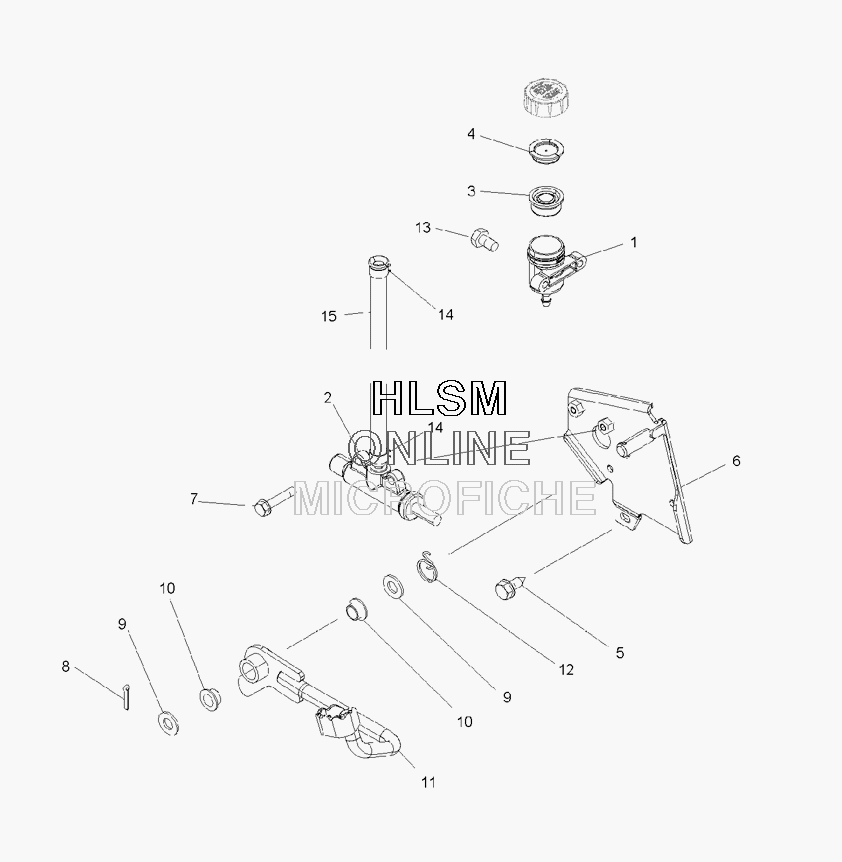

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 800 EFI HO (A09MN76AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
11911224 ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. CAP, 3, 4)ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. CAP, 3, 4)
-
21911274 ASM-M/CYL, BRAKE, FOOT, TWIN (INCL. HOSE, CLAMPS)ASM-M/CYL, BRAKE, FOOT, TWIN (INCL. HOSE, CLAMPS)
-
35413262 DIAPHRAGM-RESERVOIR, BRAKEDIAPHRAGM-RESERVOIR, BRAKE
-
45437041 RING-RESERVOIR, BRAKERING-RESERVOIR, BRAKE
-
57512232 BOLTBOLT
-
61015617-067 WELD-BRAKE MNT, BLACKWELD-BRAKE MNT, BLACK
-
77515158 SCREWSCREW
-
87661401 PIN, COTTERPIN, COTTER
-
97555919 WASHERWASHER
-
105433189 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
111911076-067 WELD-BRAKE PEDAL, BLACKWELD-BRAKE PEDAL, BLACK
-
127041750 SPRING-TORSION, BRAKESPRING-TORSION, BRAKE
-
137517386 SCREWSCREW
-
147080003 CLAMP, HOSECLAMP, HOSE
-
151911267-660 HOSE-RESERVOIR, BRAKE, 660MMHOSE-RESERVOIR, BRAKE, 660MM
