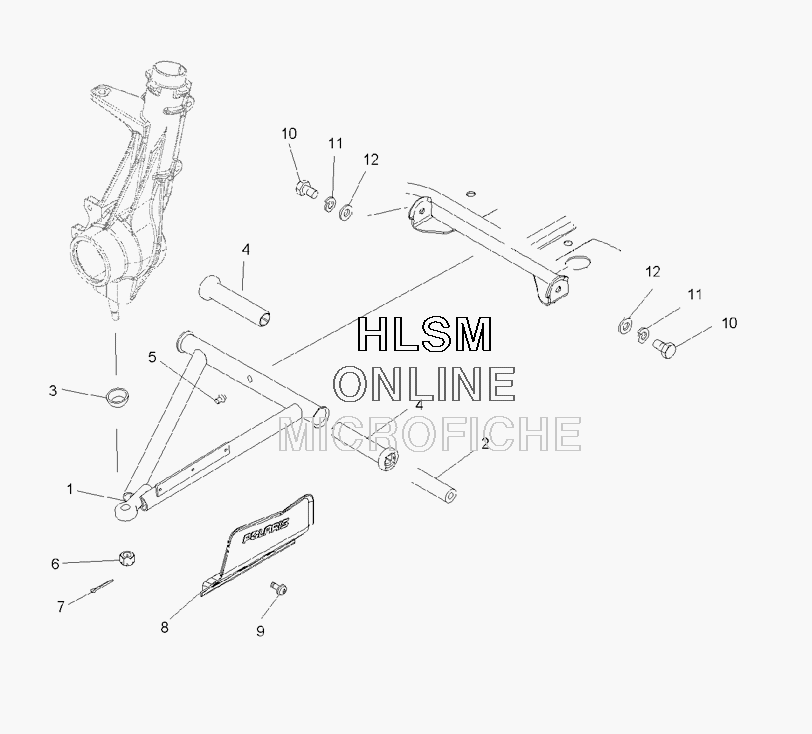

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN 800 EFI HO (A09MN76AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12202865 KIT-A-FRAME, LEFT HAND (1542025) (INCL. 2, 4, 5, 7, 10, 11, 12)KIT-A-FRAME, LEFT HAND (1542025) (INCL. 2, 4, 5, 7, 10, 11, 12)
-
12202866 KIT-A-FRAME, RIGHT HAND (1542026) (INCL. 2, 4, 5, 7, 10, 11, 12)KIT-A-FRAME, RIGHT HAND (1542026) (INCL. 2, 4, 5, 7, 10, 11, 12)
-
25133806 SHAFT-A-ARM-SHAFT-A-ARM-
-
35412658 BOOT-BALLJOINT, GREASELESS, STRTBOOT-BALLJOINT, GREASELESS, STRT
-
45434551 BUSHING-A-ARM, LONG, BLACKBUSHING-A-ARM, LONG, BLACK
-
57080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD-CV, FRONT, BASIC, LEFT HAND, BLACKSHIELD-CV, FRONT, BASIC, LEFT HAND, BLACK
-
85435029-070 SHIELD-CV, FRONT, BASIC, RIGHT HAND, BLACKSHIELD-CV, FRONT, BASIC, RIGHT HAND, BLACK
-
97512084 SCREWSCREW
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127555832 WASHERWASHER
