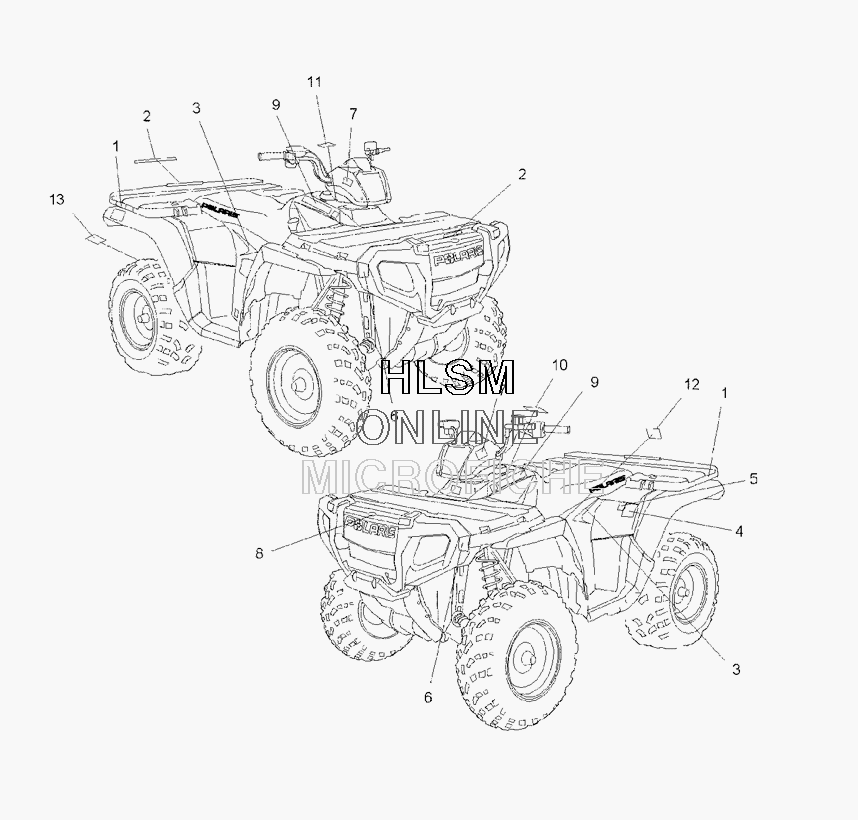

DECALS для Polaris SPORTSMAN 800 EFI HO (A09MN76AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
17172689 DECAL-REFLECTOR, REDDECAL-REFLECTOR, RED
-
27172749 DECALDECAL
-
37174985 DECAL-REARCAB, AWD, LEFT HANDDECAL-REARCAB, AWD, LEFT HAND
-
37174986 DECAL-REARCAB, AWD, RIGHT HANDDECAL-REARCAB, AWD, RIGHT HAND
-
47175643 DECALDECAL
-
57175378 DECALDECAL
-
67175490 DECAL-REFLECTOR, AMBER, LEFT HANDDECAL-REFLECTOR, AMBER, LEFT HAND
-
67175491 DECAL-REFLECTOR, AMBER, RIGHT HANDDECAL-REFLECTOR, AMBER, RIGHT HAND
-
77174263 DECAL-POD, ''EFI''DECAL-POD, ''EFI''
-
87078465 LOGO-POLARIS STARLOGO-POLARIS STAR
-
97175472 DECAL-TANK SIDE, 800, LEFT HANDDECAL-TANK SIDE, 800, LEFT HAND
-
97175473 DECAL-TANK SIDE, 800, RIGHT HANDDECAL-TANK SIDE, 800, RIGHT HAND
-
107175551 DECALDECAL
-
117175552 DECALDECAL
-
127175550 DECALDECAL
-
137170509 DECAL-HITCHDECAL-HITCH
