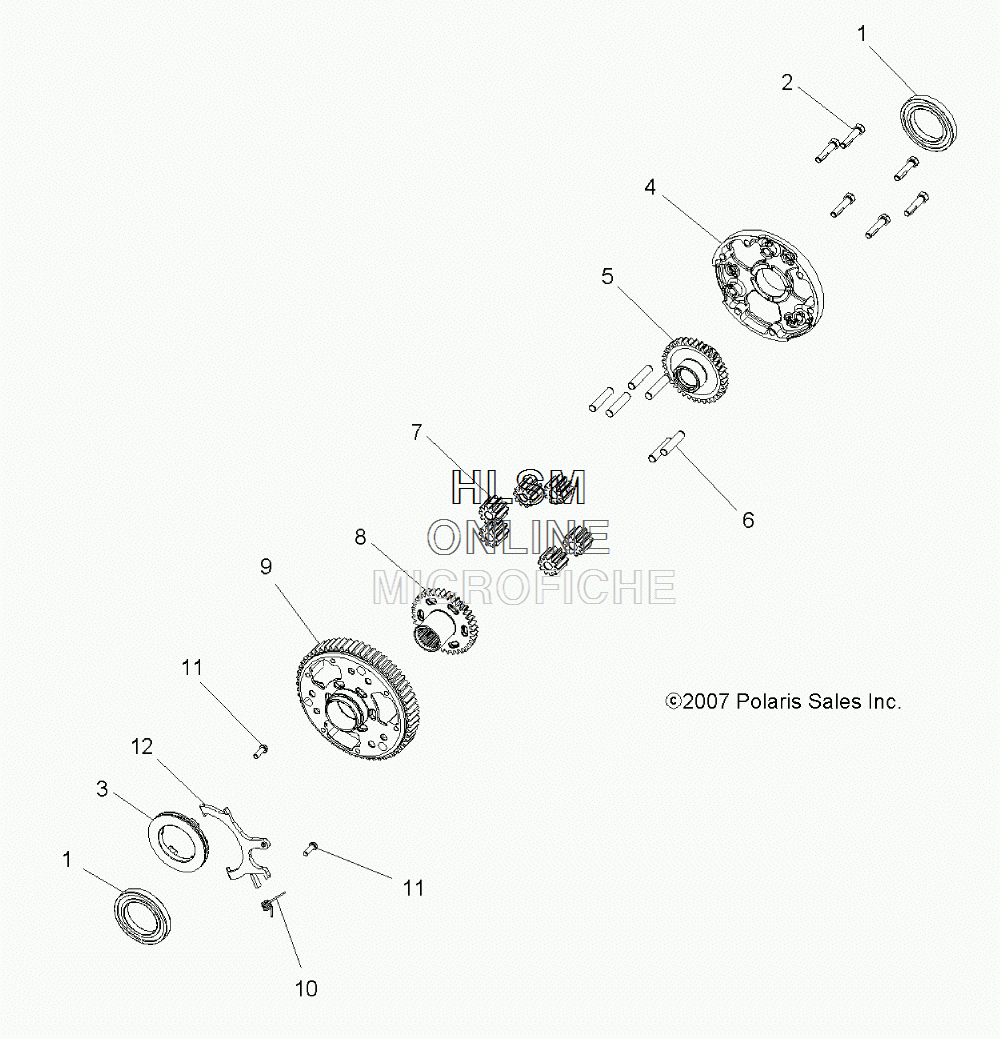

DRIVE - DIFFERENTIAL для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
-1332624 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
13234275 BEARING, BALLBEARING, BALL
-
23234267 SCREWSCREW
-
33234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
43234471 COVER, SUB ASM.COVER, SUB ASM.
-
53234363 SIDE GEAR, 36T, SUB ASM.SIDE GEAR, 36T, SUB ASM.
-
63234238 PIN, DOWELPIN, DOWEL
-
73234469 GEAR, SUB ASM.GEAR, SUB ASM.
-
83234362 SIDE GEAR, 36T, DISCONNECTSIDE GEAR, 36T, DISCONNECT
-
93234470 CARRIER, SUB ASM.CARRIER, SUB ASM.
-
103234276 SPRING, TORSIONSPRING, TORSION
-
113234086 SCREW, TORX PANSCREW, TORX PAN
-
123234285 FORK, SHIFTFORK, SHIFT
