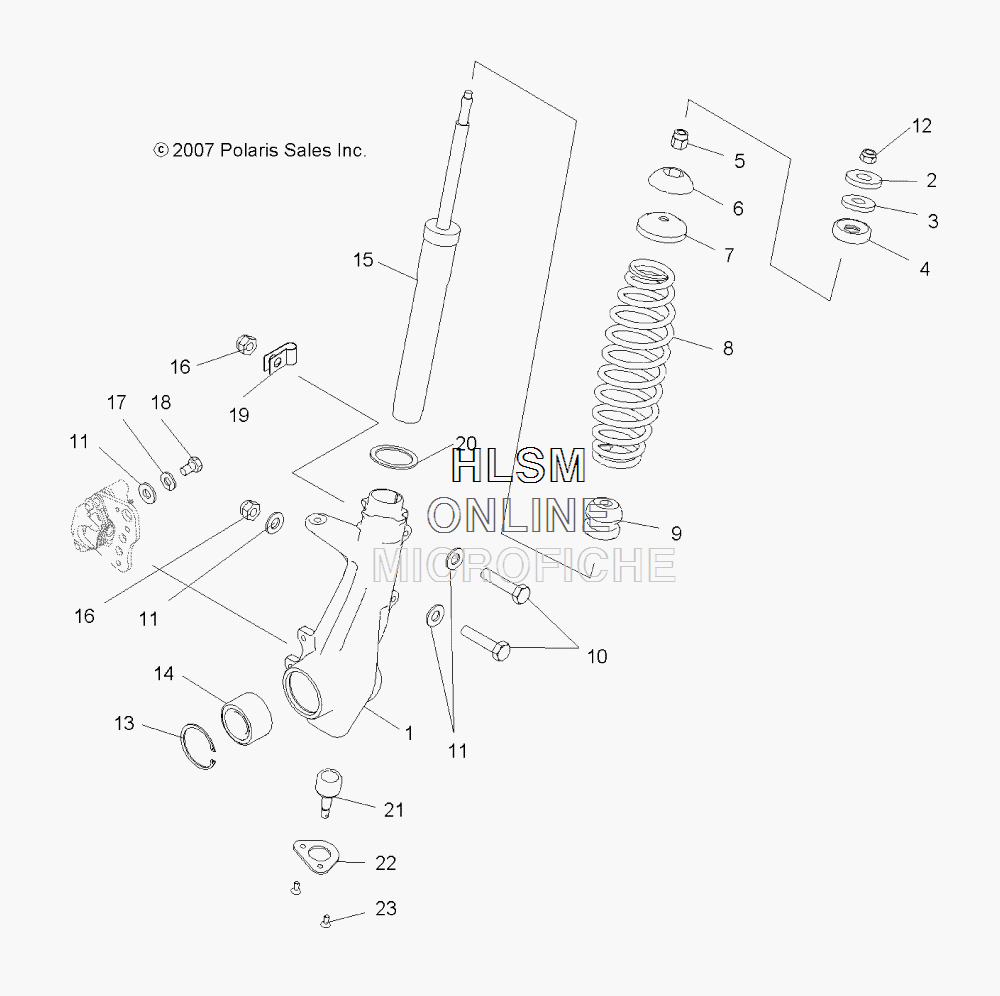

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
11822825 ASM., HUBSTRUT, LEFT HAND (INCL. 13,14,21,22,23)ASM., HUBSTRUT, LEFT HAND (INCL. 13,14,21,22,23)
-
11822826 ASM., HUBSTRUT, RIGHT HAND (INCL. 13,14,21,22,23)ASM., HUBSTRUT, RIGHT HAND (INCL. 13,14,21,22,23)
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
55132062 SPACERSPACER
-
65432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87043247-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
95412665 BUMPERBUMPER
-
107512312 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
127547104 NUTNUT
-
137710507 RING, RETAININGRING, RETAINING
-
143514634 BEARING, WHEELBEARING, WHEEL
-
157041762 STRUT, FRONTSTRUT, FRONT
-
167542324 NUT, NYLOKNUT, NYLOK
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187512365 SCREWSCREW
-
197080367 CLAMP, CABLECLAMP, CABLE
-
205211115 WASHERWASHER
-
217061158 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
225211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
237512284 SCREWSCREW
