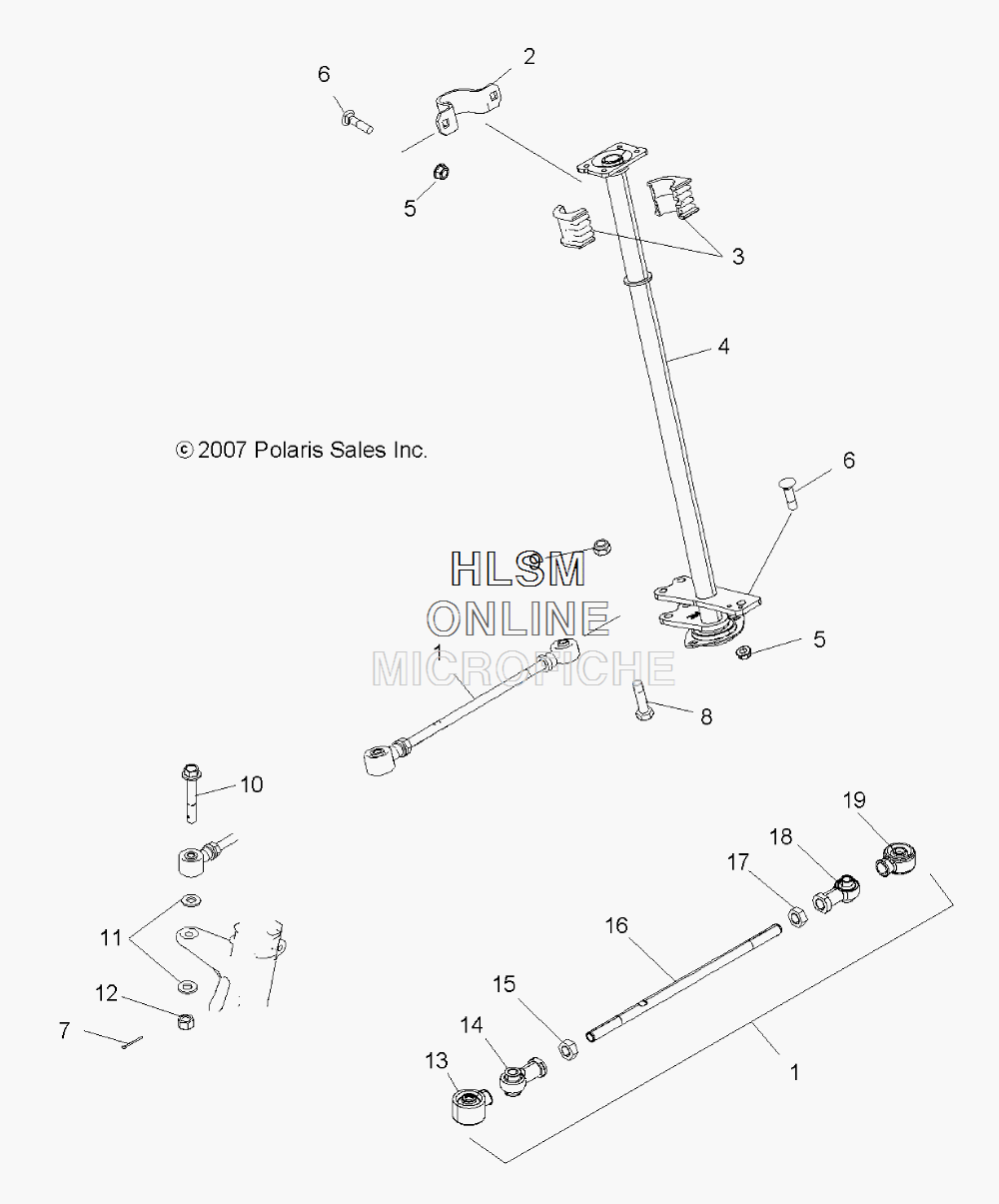

STEERING POST для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
11822851 ASM., TIE ROD (INCL. 13-19)ASM., TIE ROD (INCL. 13-19)
-
25246732 BRACKET, UPPER, BUSHINGBRACKET, UPPER, BUSHING
-
35433866 BUSHING, UPPERBUSHING, UPPER
-
41823281 POST, STEERINGPOST, STEERING
-
57542343 NUT, FLANGENUT, FLANGE
-
67517428 BOLTBOLT
-
77661203 PIN, COTTERPIN, COTTER
-
87515415 SCREWSCREW
-
97542439 NUT, NYLOKNUT, NYLOK
-
107517909 BOLTBOLT
-
117556099 WASHERWASHER
-
127547177 NUTNUT
-
135412929 BOOT, SEALBOOT, SEAL
-
147061138 ROD END, LEFT HANDROD END, LEFT HAND
-
157547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
165134242 TIE RODTIE ROD
-
177542711 NUT, JAMNUT, JAM
-
187061139 ROD END, RIGHT HANDROD END, RIGHT HAND
-
195412928 BOOT, SEALBOOT, SEAL
