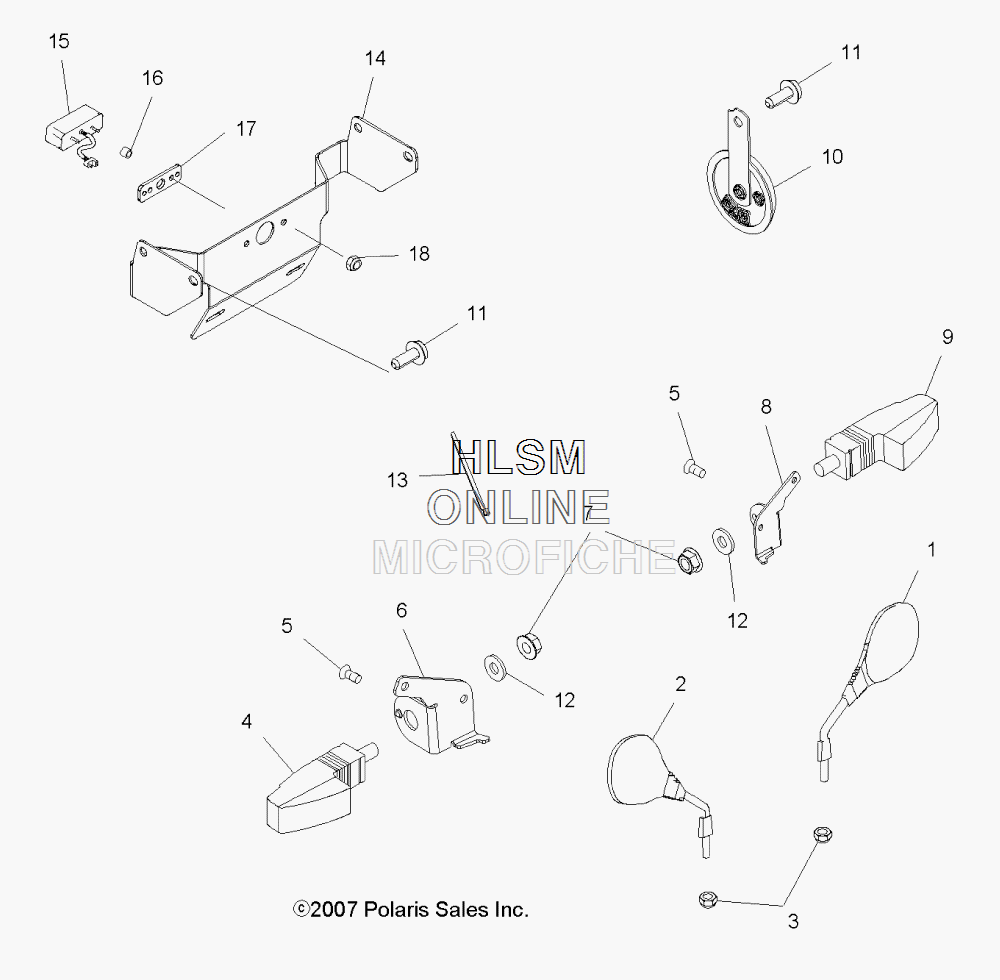

TURN SIGNALS - MIRRORS - HORN для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12633314 ASM., MIRROR, HANDLEBAR, LEFT HANDASM., MIRROR, HANDLEBAR, LEFT HAND
-
22633315 ASM., MIRROR, HANDLEBAR, RIGHT HANDASM., MIRROR, HANDLEBAR, RIGHT HAND
-
37546804 NUT, HEXNUT, HEX
-
42410722 SIGNAL, TURN, FRONT, RIGHT HANDSIGNAL, TURN, FRONT, RIGHT HAND
-
57517561 SCREWSCREW
-
65250013-067 BRACKET, TURN SIGNAL MOUNT, RIGHT HANDBRACKET, TURN SIGNAL MOUNT, RIGHT HAND
-
77547345 NUTNUT
-
85250012-067 BRACKET, TURN SIGNAL MOUNT, LEFT HANDBRACKET, TURN SIGNAL MOUNT, LEFT HAND
-
92410721 SIGNAL, TURN, FRONT LEFT HANDSIGNAL, TURN, FRONT LEFT HAND
-
104011579 HORNHORN
-
117515399 SCREWSCREW
-
127556377 WASHER, INTER LOCKWASHER, INTER LOCK
-
137080138 CABLE TIECABLE TIE
-
145251799-067 BRACKET, REG, PLATE (BLACK)BRACKET, REG, PLATE (BLACK)
-
152410629 LIGHT, LICENSE, PLATE (BLACK)LIGHT, LICENSE, PLATE (BLACK)
-
165134403 SPACERSPACER
-
175812520 SPACER, LIGHTSPACER, LIGHT
-
187546601 NUT, NYLOKNUT, NYLOK
