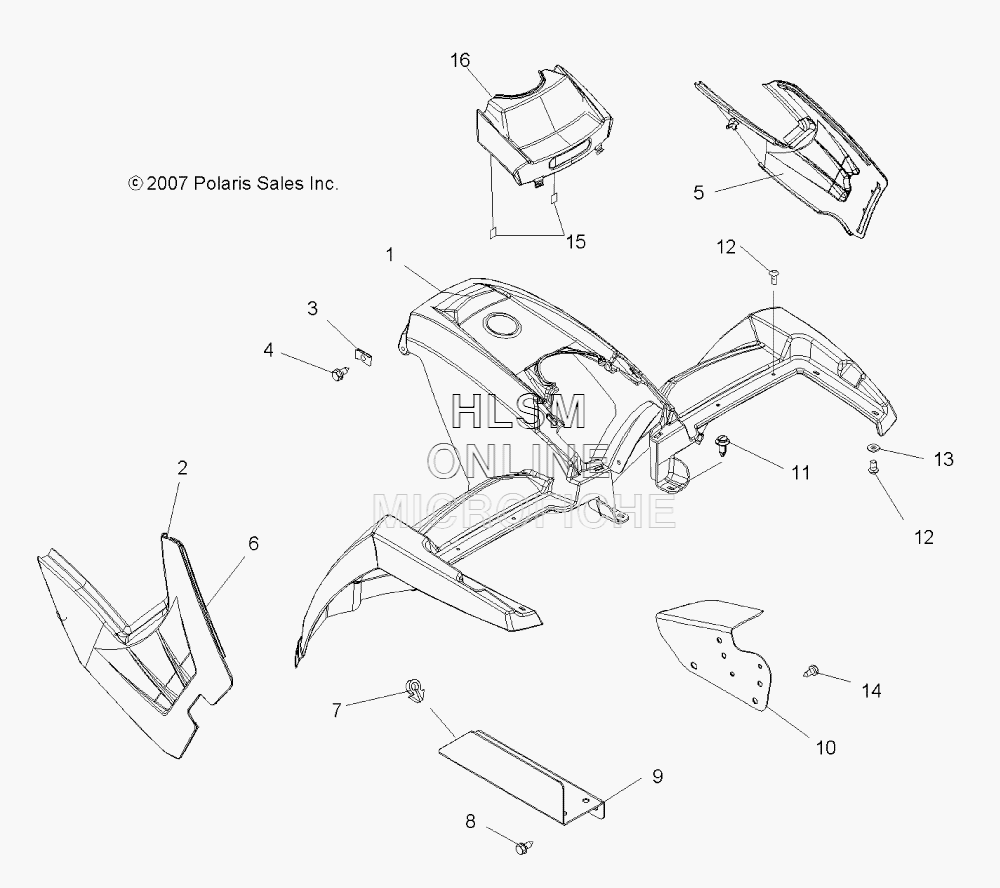

BODY- FRONT CAB для Polaris SPORTSMAN TOURING 500 HO INTL (A10DH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
12633458-498 ASM., CAB, FRONT (SAGE BRUSH GREEN) (INCL. WARNING DECALS)ASM., CAB, FRONT (SAGE BRUSH GREEN) (INCL. WARNING DECALS)
-
22632936-070 ASM., PANEL/FOIL (BLACK) (RIGHT) (INCL. 6)ASM., PANEL/FOIL (BLACK) (RIGHT) (INCL. 6)
-
37670057 NUT, SPEEDNUT, SPEED
-
47517219 SCREWSCREW
-
55435559-070 PANEL, SIDE (BLACK) (LEFT)PANEL, SIDE (BLACK) (LEFT)
-
65813055 FOIL, FRONTFOIL, FRONT
-
65813031 FOIL, L SHAPEFOIL, L SHAPE
-
65813041 FOILFOIL
-
77670102 CLIPCLIP
-
87517386 SCREWSCREW
-
95248100-329 GUARD, SPLASH (RIGHT)GUARD, SPLASH (RIGHT)
-
105246872 GUARD, SPLASH (LEFT)GUARD, SPLASH (LEFT)
-
117661855 RIVETRIVET
-
127512026 SCREWSCREW
-
137556034 WASHERWASHER
-
147515179 SCREWSCREW
-
157661893 CLIP, TRIM MEDALCLIP, TRIM MEDAL
-
165436715-498 COVER, FRONT (SAGE BRUSH GREEN)COVER, FRONT (SAGE BRUSH GREEN)
