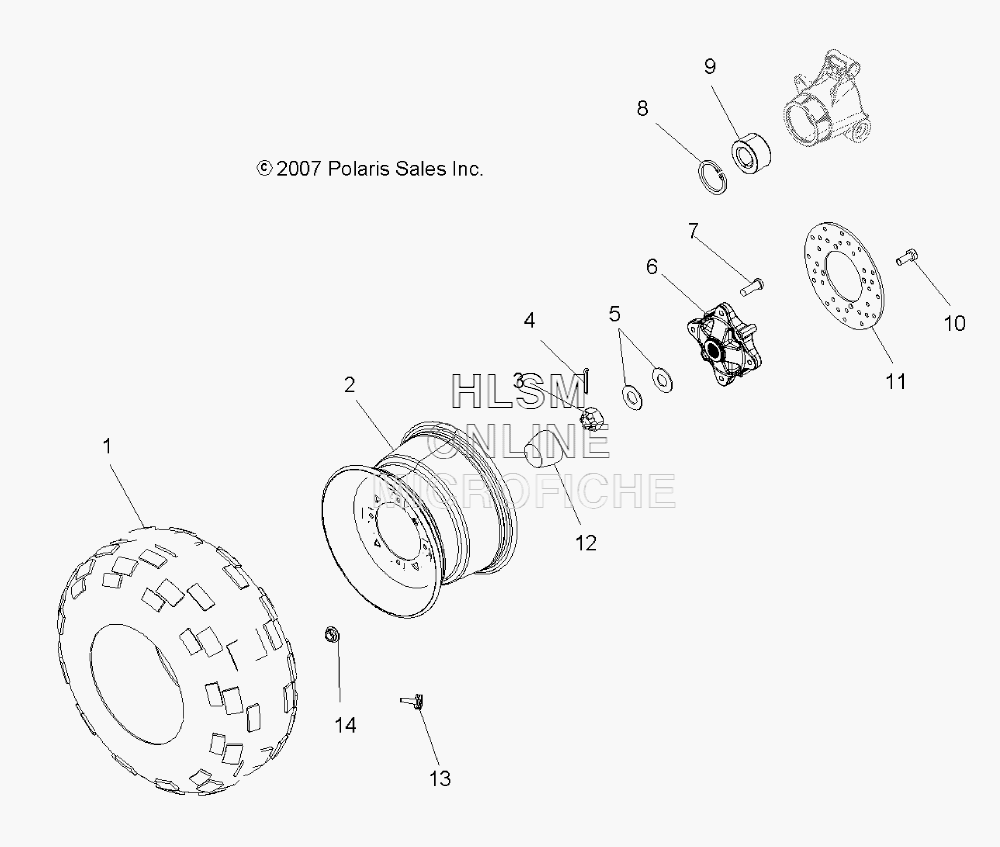

WHEELS- REAR для Polaris SPORTSMAN TOURING 500 HO INTL (A10DH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
15413115 TIRE, REAR, 25X11-12TIRE, REAR, 25X11-12
-
21520992-067 RIM, REAR (BLACK)RIM, REAR (BLACK)
-
37543005 NUT, CASTLENUT, CASTLE
-
47661404 PIN, COTTERPIN, COTTER
-
57555796 WASHER, CONEWASHER, CONE
-
65135657 HUB, REAR WHEELHUB, REAR WHEEL
-
77518378 STUDSTUD
-
87710440 RING, RETAININGRING, RETAINING
-
93514635 BEARING, WHEELBEARING, WHEEL
-
107518653 BOLTBOLT
-
115248250 DISC, BRAKE, REARDISC, BRAKE, REAR
-
125413427 HUB, COVER, DUSTHUB, COVER, DUST
-
131525017 VALVE, RIMVALVE, RIM
-
147547237 NUT, FLANGENUT, FLANGE
