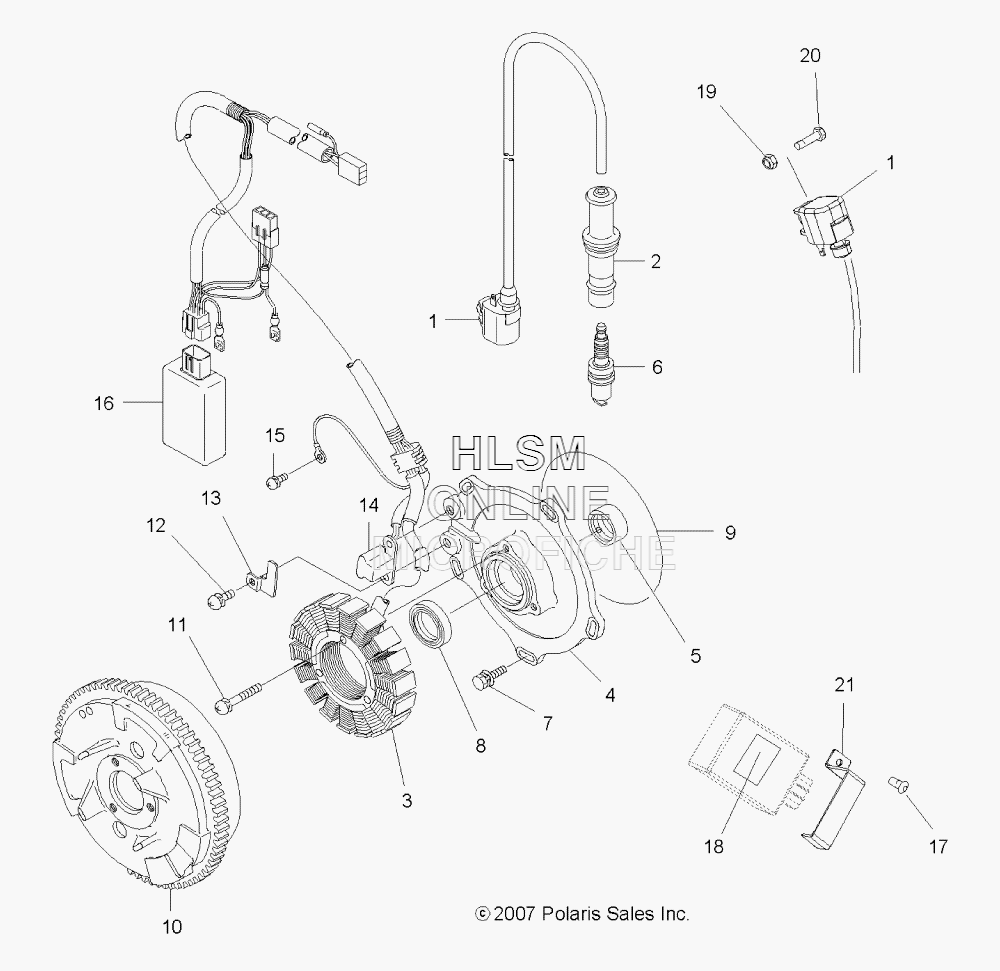

IGNITION SYSTEM для Polaris SPORTSMAN TOURING 500 HO INTL (A10DH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
13089239 ASM., COIL, IGNITION (INCL. 2)ASM., COIL, IGNITION (INCL. 2)
-
23084980 CAP, SPARK PLUGCAP, SPARK PLUG
-
33090061 ASM., PLATE (INCL. 3, 5,7,8,11,12,13,14)ASM., PLATE (INCL. 3, 5,7,8,11,12,13,14)
-
43090061 ASM., PLATE (INCL. 3, 5,7,8,11,12,13,14)ASM., PLATE (INCL. 3, 5,7,8,11,12,13,14)
-
43089248 PLATEPLATE
-
53084972 BEARING, METALBEARING, METAL
-
63070172 PLUG, SPARK, BKR6EPLUG, SPARK, BKR6E
-
73081657 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
83084973 SEAL, OILSEAL, OIL
-
93084978 O-RINGO-RING
-
103089544 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
113089547 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
123084976 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
133089250 BAND, PULSEBAND, PULSE
-
143089254 COIL, PULSERCOIL, PULSER
-
153081256 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
163089775 CDI SYSTEMCDI SYSTEM
-
177512024 SCREWSCREW
-
185810317 PADPAD
-
197541925 NUT, NYLOKNUT, NYLOK
-
207512007 BOLTBOLT
-
215246747 BRACKET, CDIBRACKET, CDI
