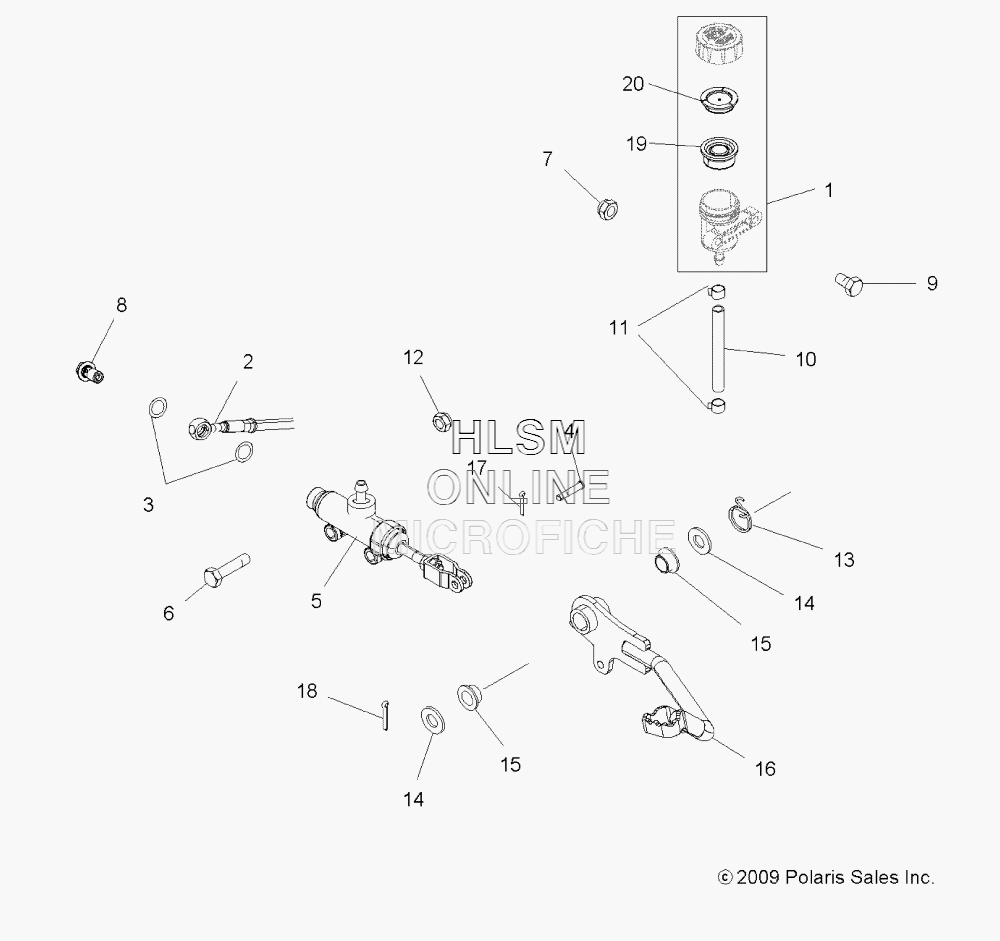

BRAKES- FOOT PEDAL AND MASTER CYLINDER для Polaris SPORTSMAN TOURING 500 HO INTL (A10DH50FX) (SAGE BRUSH GREEN METALLIC) - 2010 года выпуска
-
№АртикулНазвание
-
11911224 ASM., RESERVOIR, BRAKE (INCL. 19,20)ASM., RESERVOIR, BRAKE (INCL. 19,20)
-
21911345 LINE, BRAKE, FOOT TO J/BLINE, BRAKE, FOOT TO J/B
-
35413212 SEALSEAL
-
47661830 PIN, CLEVISPIN, CLEVIS
-
51911551 ASM., MASTER CYLINDER, FOOTASM., MASTER CYLINDER, FOOT
-
67515306 SCREWSCREW
-
77542122 NUT, NYLOKNUT, NYLOK
-
81910499 BOLT, BANJOBOLT, BANJO
-
97512240 SCREWSCREW
-
101911267-635 HOSE, RESERVOIRHOSE, RESERVOIR
-
117080003 CLAMP, HOSECLAMP, HOSE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137043276 SPRING, TORSIONSPRING, TORSION
-
147555919 WASHERWASHER
-
155433189 BUSHING, PEDAL, PIVOTBUSHING, PEDAL, PIVOT
-
161911324-067 ROD, BRAKE (BLACK)ROD, BRAKE (BLACK)
-
177661900 PIN, COTTERPIN, COTTER
-
187661401 PIN, COTTERPIN, COTTER
-
195413262 DIAPHRAGM, RESERVOIR, BRAKEDIAPHRAGM, RESERVOIR, BRAKE
-
205437041 RING, RESERVOIR, BRAKERING, RESERVOIR, BRAKE
