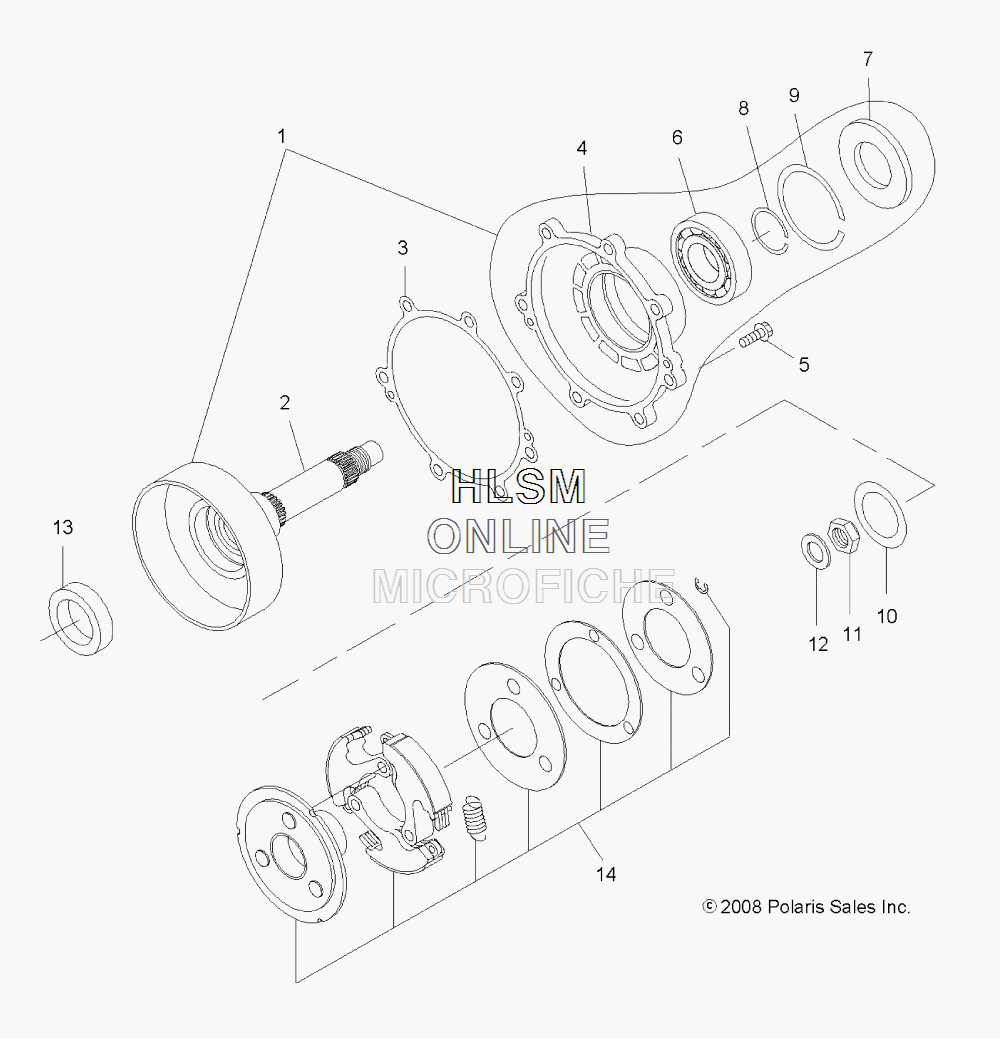

CLUTCH ASSY для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска
-
№АртикулНазвание
-
13089981 ASM., CLUTCH SHAFT (INCL. 2,4,6-9)ASM., CLUTCH SHAFT (INCL. 2,4,6-9)
-
23089874 SHAFT, CVT DRIVESHAFT, CVT DRIVE
-
33089871 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
43089982 COVER, CLUTCH, COMPLETE (INCL. COVER,6)COVER, CLUTCH, COMPLETE (INCL. COVER,6)
-
53089988 BOLTBOLT
-
63089866 BEARING, BALLBEARING, BALL
-
73089867 SEAL, OILSEAL, OIL
-
83089868 CLIPCLIP
-
93089869 CLIPCLIP
-
103089916 SPACERSPACER
-
113089876 NUT, LOCKNUT, LOCK
-
123089877 WASHER, LOCKWASHER, LOCK
-
133089875 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
143089979 CLUTCHCLUTCH
