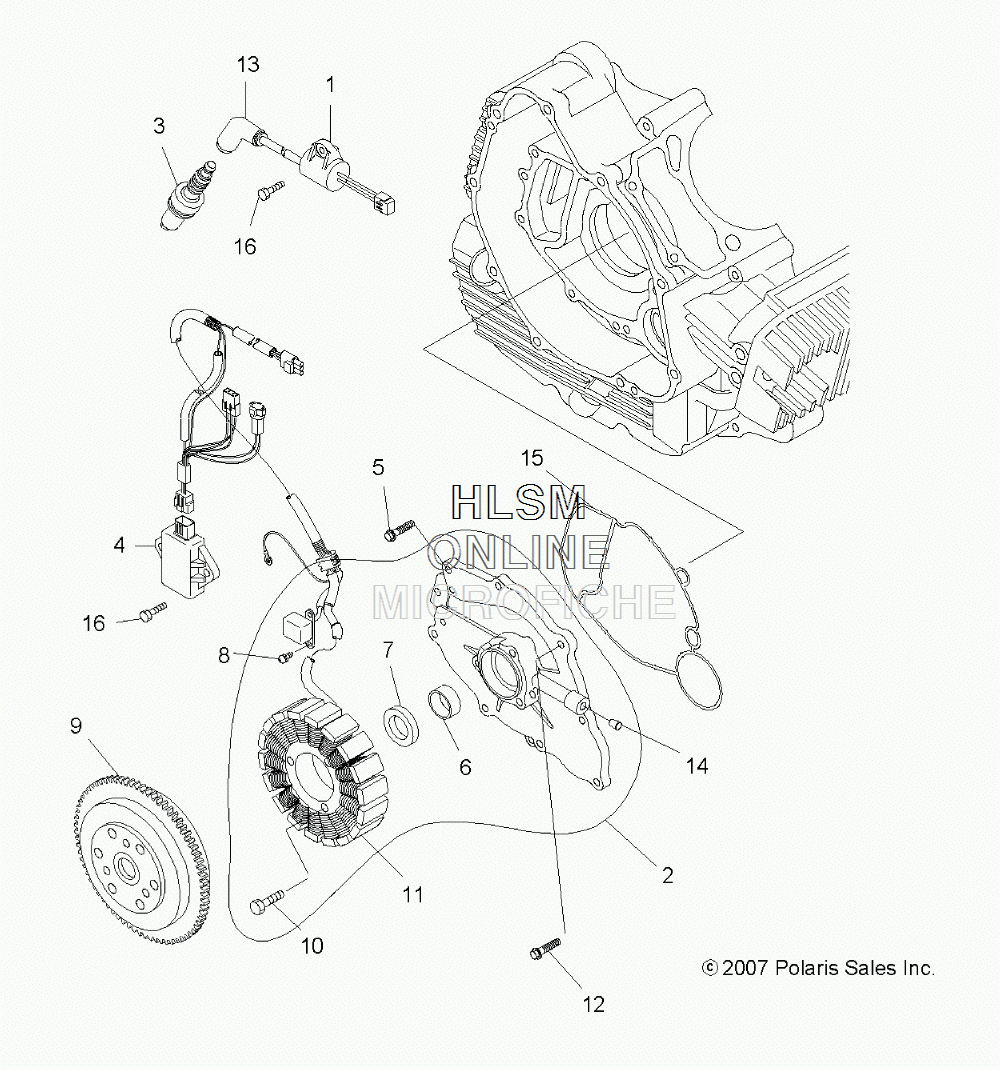

IGNITION SYSTEM для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска
-
№АртикулНазвание
-
13089860 ASM., IGNITION COIL (INCL. 13)ASM., IGNITION COIL (INCL. 13)
-
13089910 COIL, IGNITIONCOIL, IGNITION
-
23089852 ASM., PLATE (INCL. 6-8,10,11,14)ASM., PLATE (INCL. 6-8,10,11,14)
-
23089854 PLATE COMPLETE (INCL. 6-8,10,14)PLATE COMPLETE (INCL. 6-8,10,14)
-
33021759 PLUG, SPARKPLUG, SPARK
-
43089978 CDI SYSTEMCDI SYSTEM
-
53087150 BOLT, FLANGEBOLT, FLANGE
-
63089855 BEARING, METALBEARING, METAL
-
73084973 SEAL, OILSEAL, OIL
-
83084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
93089974 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
103089989 BOLTBOLT
-
113089853 STATORSTATOR
-
123089801 BOLT, FLANGEBOLT, FLANGE
-
133089861 CAP, SPARK PLUGCAP, SPARK PLUG
-
143089992 PLUGPLUG
-
153089858 O-RINGO-RING
-
167512024 SCREWSCREW
