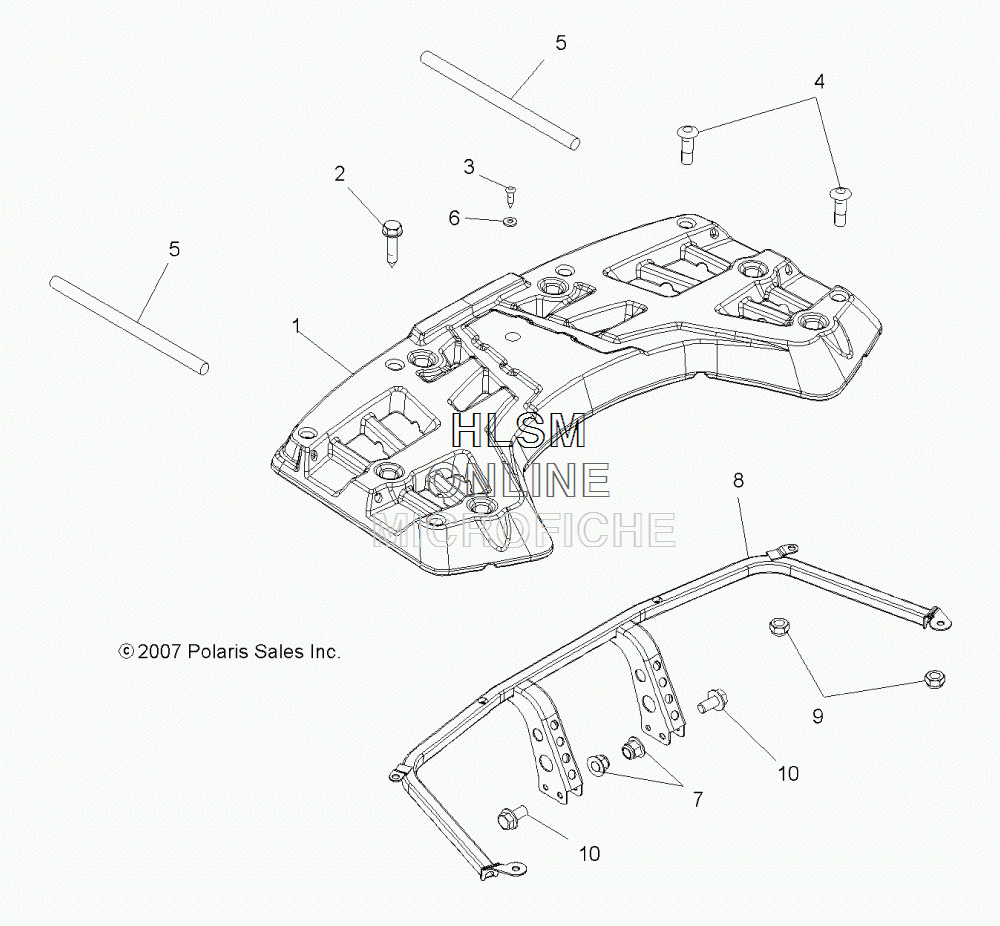

RACK - REAR для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска
-
№АртикулНазвание
-
12633441-070 ASM., RACK, REAR (BLACK) (INCL. WARNING DECAL, RODS)ASM., RACK, REAR (BLACK) (INCL. WARNING DECAL, RODS)
-
27518529 SCREW, FLANGESCREW, FLANGE
-
37512026 SCREWSCREW
-
47518533 SCREW, FLANGESCREW, FLANGE
-
55521744 ROD, CARGO, RACKROD, CARGO, RACK
-
67556034 WASHERWASHER
-
77547317 NUT, FLANGENUT, FLANGE
-
81015408-067 SUPPORT, REAR RACK (BLACK)SUPPORT, REAR RACK (BLACK)
-
97547339 NUT, FLANGENUT, FLANGE
-
107516732 SCREW, FLANGESCREW, FLANGE
