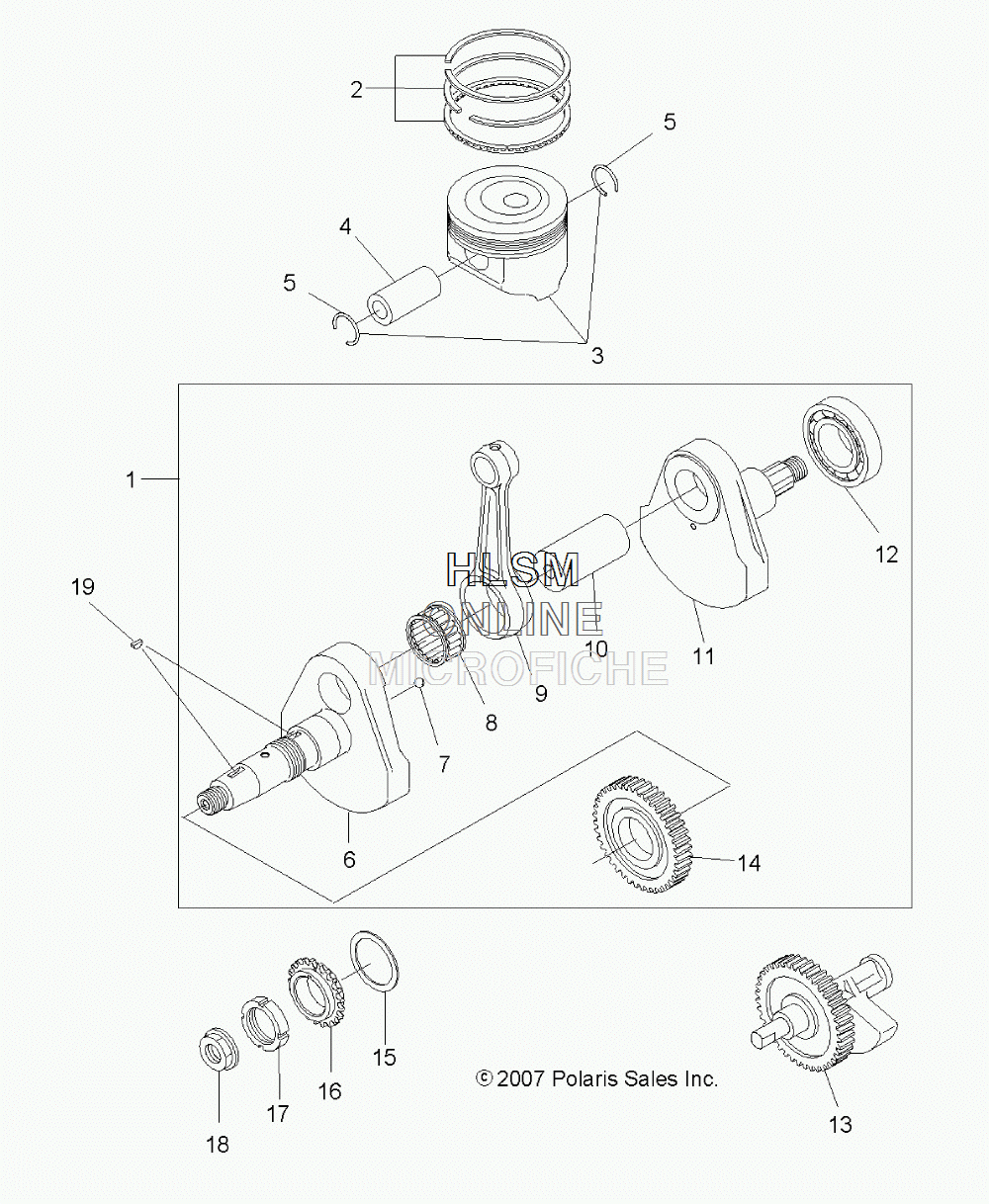

CRANKSHAFT W/ CYLINDER для Polaris HAWKEYE 2X4 (A11LB27AA) - 2011 года выпуска
-
№АртикулНазвание
-
13089807 ASM., CRANKSHAFT (INCL. 6-12,14)ASM., CRANKSHAFT (INCL. 6-12,14)
-
23089822 PISTON RING SET, STANDARDPISTON RING SET, STANDARD
-
23089823 PISTON RING SET, .25MM O/SPISTON RING SET, .25MM O/S
-
23089824 PISTON RING SET, .5MM O/SPISTON RING SET, .5MM O/S
-
33089818 PISTON SET, STANDARD (INCL. 5)PISTON SET, STANDARD (INCL. 5)
-
33089819 PISTON SET, .25MM O/S (INCL. 5)PISTON SET, .25MM O/S (INCL. 5)
-
33089820 PISTON SET, .5MM O/S (INCL. 5)PISTON SET, .5MM O/S (INCL. 5)
-
43089821 PIN, PISTONPIN, PISTON
-
53084167 CLIPCLIP
-
63089808 CRANKSHAFT 1CRANKSHAFT 1
-
73085024 BALL, STEELBALL, STEEL
-
83089812 BEARING, LARGE ENDBEARING, LARGE END
-
93089811 ROD, CONNECTINGROD, CONNECTING
-
103089810 PIN, CRANKPIN, CRANK
-
113089809 CRANKSHAFT 2CRANKSHAFT 2
-
123089814 BEARING, BALLBEARING, BALL
-
133089815 SHAFT, BALANCERSHAFT, BALANCER
-
143089813 GEAR, BALANCER, 1GEAR, BALANCER, 1
-
153089825 SPACERSPACER
-
153089826 SPACERSPACER
-
153089827 SPACERSPACER
-
163089816 SPROCKET 1SPROCKET 1
-
173085528 NUTNUT
-
183089991 NUTNUT
-
193081543 KEY, WOODRUFFKEY, WOODRUFF
