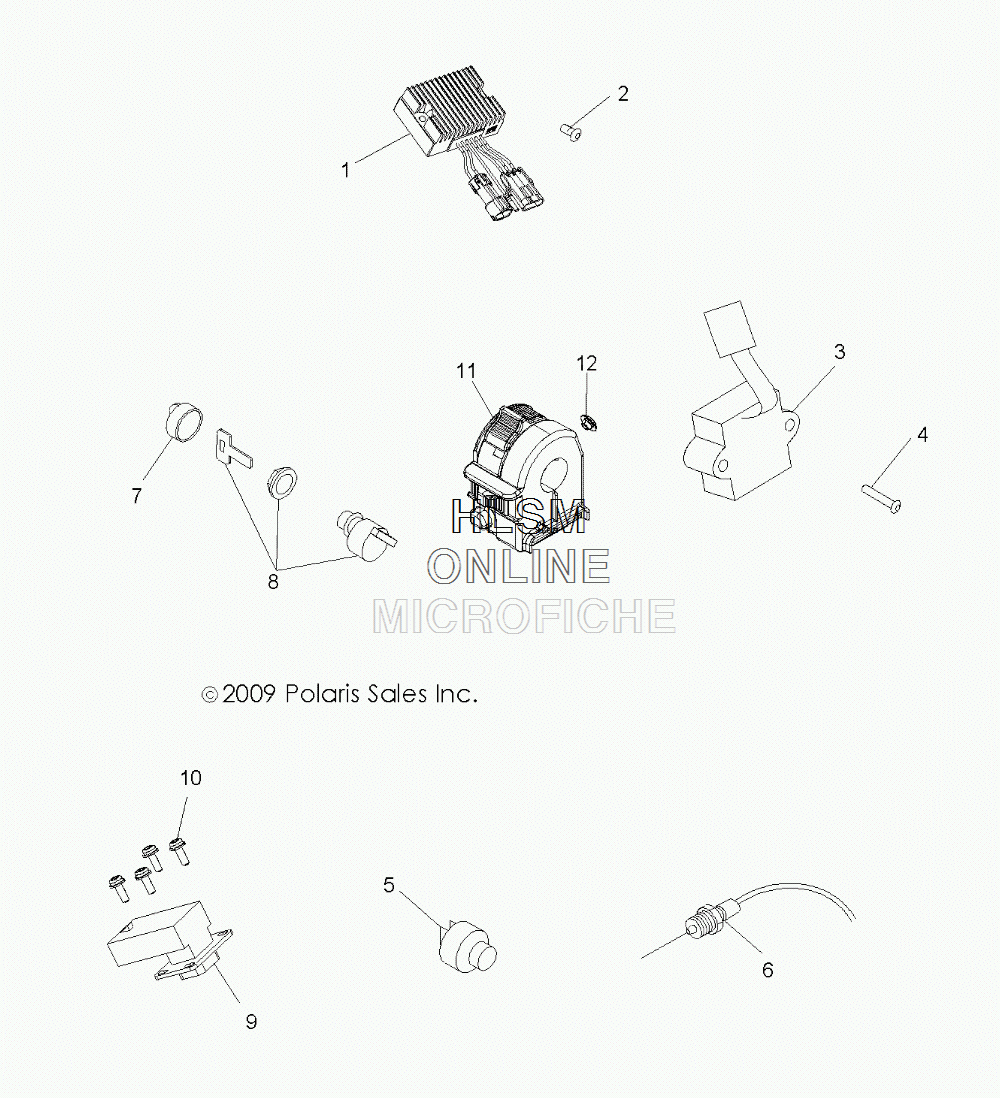

ELECTRICAL COMPONENTS для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска
-
№АртикулНазвание
-
14012192 RECTIFIER/REGULATORRECTIFIER/REGULATOR
-
27512084 SCREWSCREW
-
34012948 MODULE, VEHICLE CONTROLMODULE, VEHICLE CONTROL
-
47512025 SCREWSCREW
-
54110164 SWITCH (BRAKE LIGHT)SWITCH (BRAKE LIGHT)
-
63089246 SENSOR, THERMOSENSOR, THERMO
-
75433534 COVER, KEYCOVER, KEY
-
84012165 SWITCH, KEY, 3 POSITION (INCL. 7)SWITCH, KEY, 3 POSITION (INCL. 7)
-
85433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
84010278 BLANK, KEY, SERIES 2000,22100,6700,7800 (SEE NOTE)BLANK, KEY, SERIES 2000,22100,6700,7800 (SEE NOTE)
-
93234002 SWITCH, 3 POSITION, GEAR INDICATIONSWITCH, 3 POSITION, GEAR INDICATION
-
103233749 SCREWSCREW
-
114011655 SWITCH, HANDLEBAR (LEFT), ON/OFFSWITCH, HANDLEBAR (LEFT), ON/OFF
-
125432952 PLUG, HOLEPLUG, HOLE
