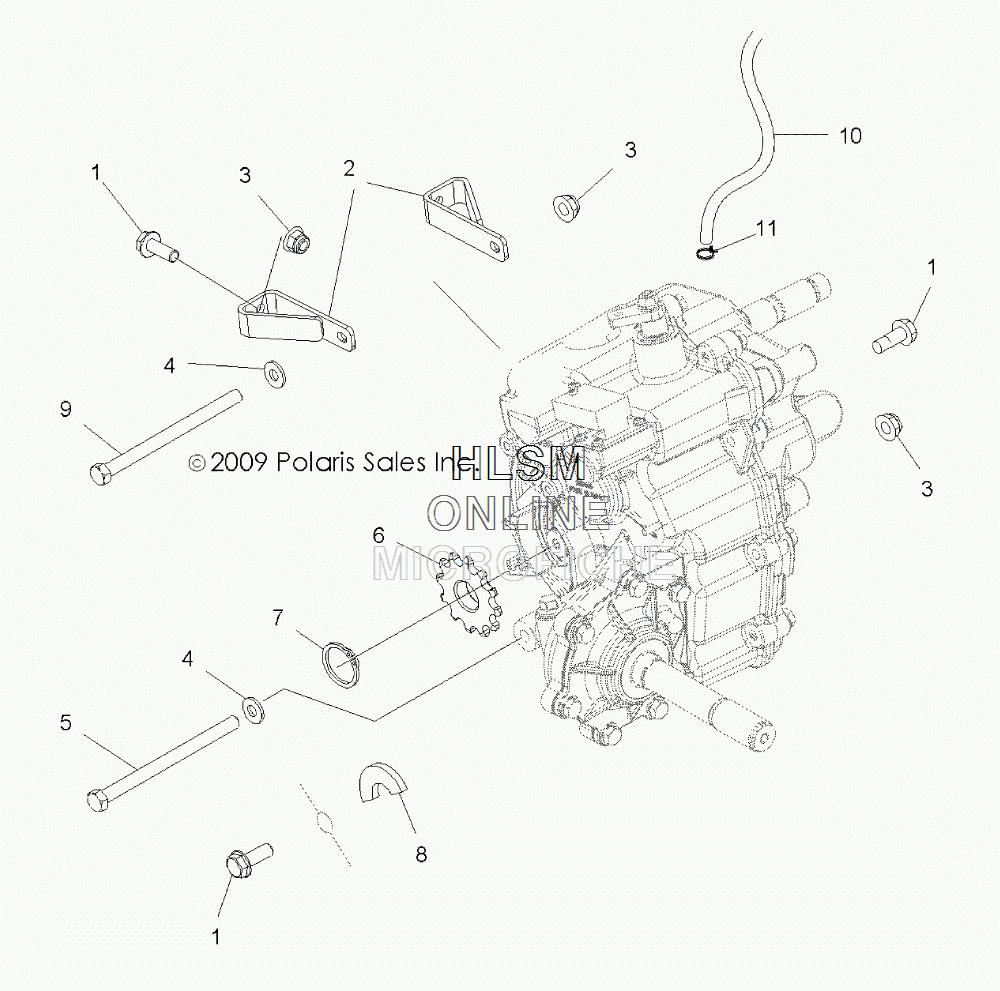

GEARCASE - MAIN - MOUNTING для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска
-
№АртикулНазвание
-
17518364 BOLTBOLT
-
21014772 MOUNT, TRANSMISSIONMOUNT, TRANSMISSION
-
37547180 NUT, FLANGEDNUT, FLANGED
-
47555806 WASHER, FLATWASHER, FLAT
-
57517646 SCREWSCREW
-
63221041 SPROCKET, 13TSPROCKET, 13T
-
77710434 RING, SNAPRING, SNAP
-
85211065 SHIM, .010SHIM, .010
-
85210764 SHIM, .020SHIM, .020
-
85211517 SHIM, .030SHIM, .030
-
97517640 SCREWSCREW
-
108450003-1525 LINE, FUELLINE, FUEL
-
117080307 CLAMP, HOSECLAMP, HOSE
