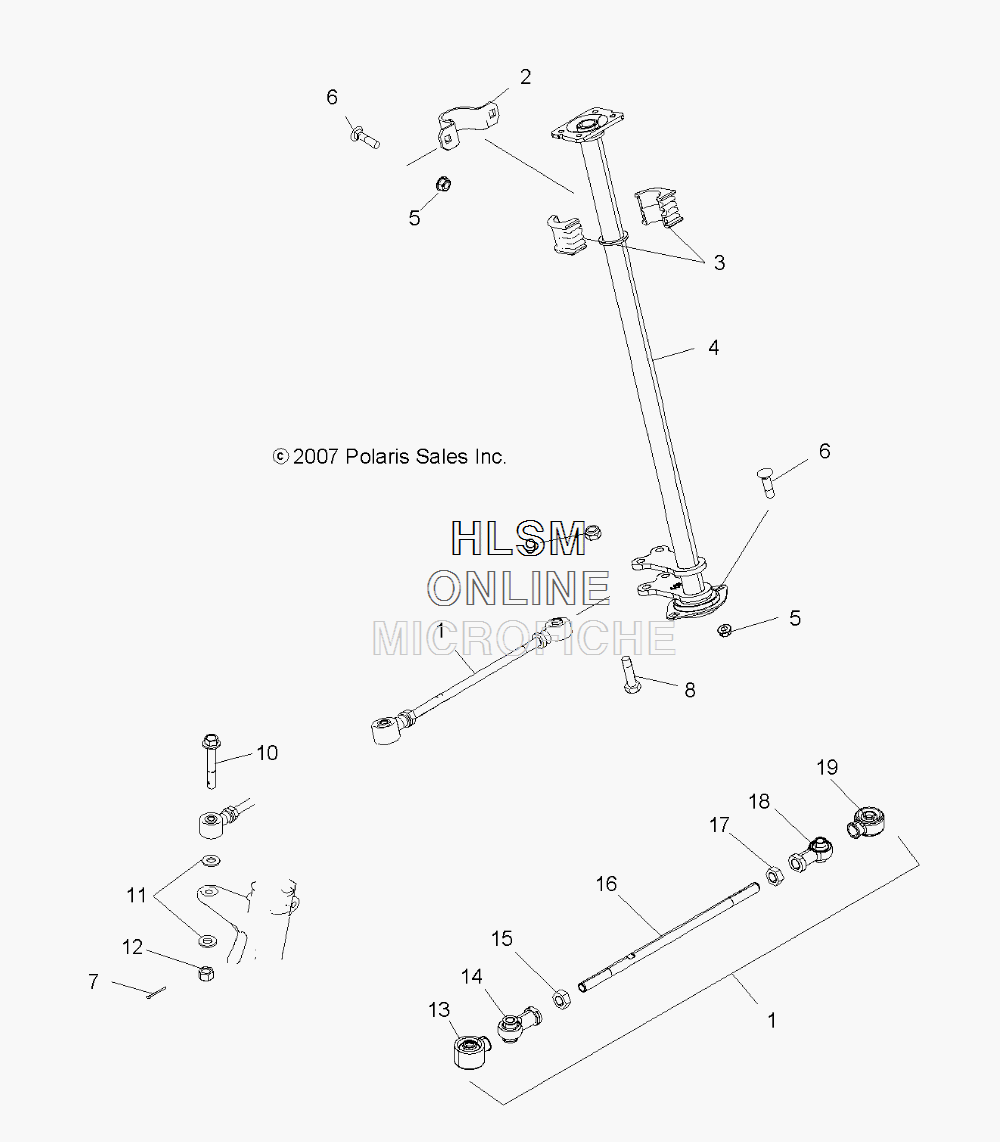

STEERING POST для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска
-
№АртикулНазвание
-
11822852 ASM., TIE ROD (INCL. 13-19)ASM., TIE ROD (INCL. 13-19)
-
25246732 BRACKET, UPPER, BUSHINGBRACKET, UPPER, BUSHING
-
35438903 BUSHING, UPPERBUSHING, UPPER
-
41823278 POST, STEERINGPOST, STEERING
-
57542343 NUT, FLANGENUT, FLANGE
-
67517428 BOLTBOLT
-
77661203 PIN, COTTERPIN, COTTER
-
87515415 SCREWSCREW
-
97542439 NUT, NYLOKNUT, NYLOK
-
107517909 BOLTBOLT
-
117556099 WASHERWASHER
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
135412929 BOOT, SEALBOOT, SEAL
-
147061138 ROD END (LEFT)ROD END (LEFT)
-
157547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
165020926 TIE RODTIE ROD
-
177542711 NUT, JAMNUT, JAM
-
187061139 ROD END (RIGHT)ROD END (RIGHT)
-
195412928 BOOT, SEALBOOT, SEAL
