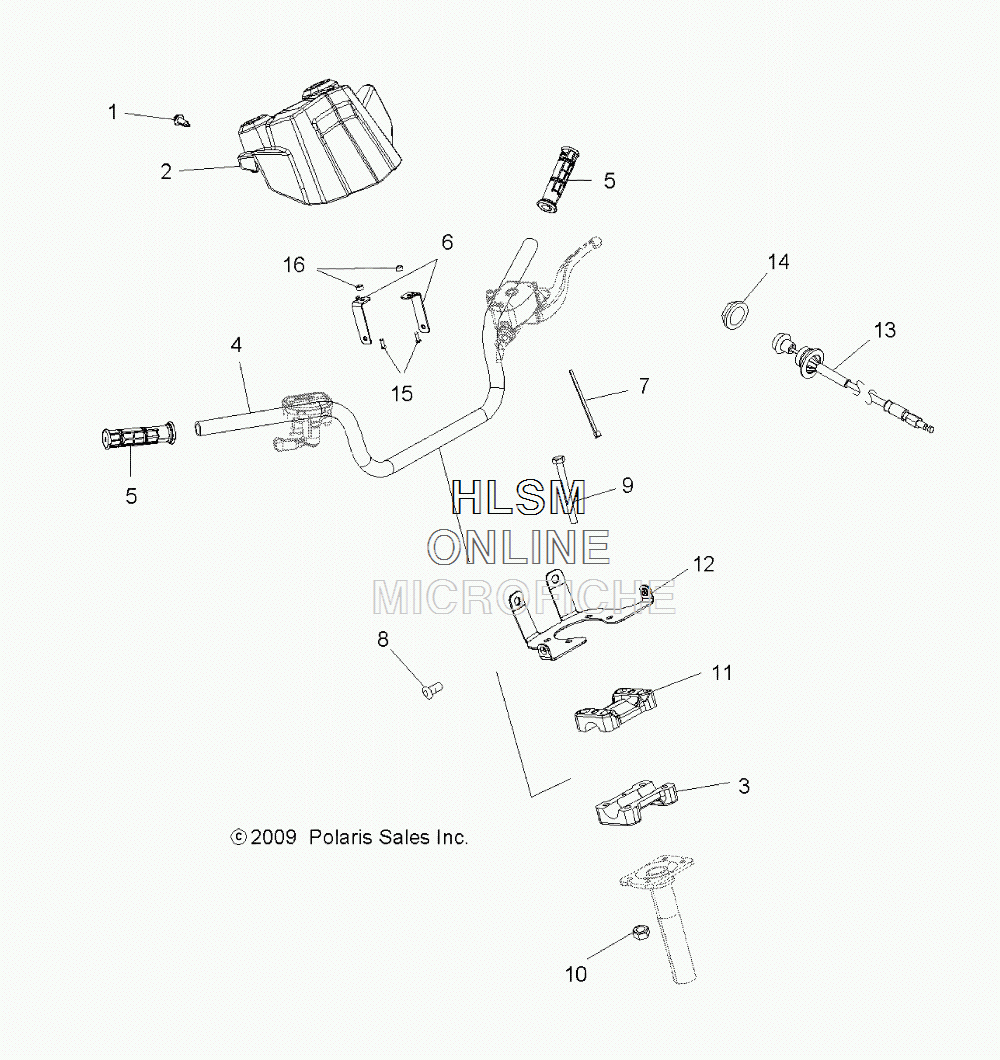

HANDLEBAR - CONTROL ASSY. для Polaris SCRAMBLER 500 4X4 (A11NG50AA) - 2011 года выпуска
-
№АртикулНазвание
-
17661855 RIVET, TUFLOKRIVET, TUFLOK
-
25438044-293 POD, INSTRUMENT (INDY RED)POD, INSTRUMENT (INDY RED)
-
25438044-070 POD, INSTRUMENT (BLACK)POD, INSTRUMENT (BLACK)
-
35631973 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
45244581-067 TUBE, HANDLEBAR (BLACK)TUBE, HANDLEBAR (BLACK)
-
55413578-070 GRIP, HANDLEBAR (BLACK)GRIP, HANDLEBAR (BLACK)
-
65250156 MOUNT, POD SUPPORTMOUNT, POD SUPPORT
-
77080138 CABLE TIECABLE TIE
-
87512024 SCREWSCREW
-
97515189 SCREWSCREW
-
107542122 NUT, NYLOKNUT, NYLOK
-
115631972 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
125250697-329 BRACKET, PODBRACKET, POD
-
137081171 CABLE, CHOKECABLE, CHOKE
-
147080922 NUT, CHOKENUT, CHOKE
-
157512054 SCREWSCREW
-
167556318 SPACERSPACER
