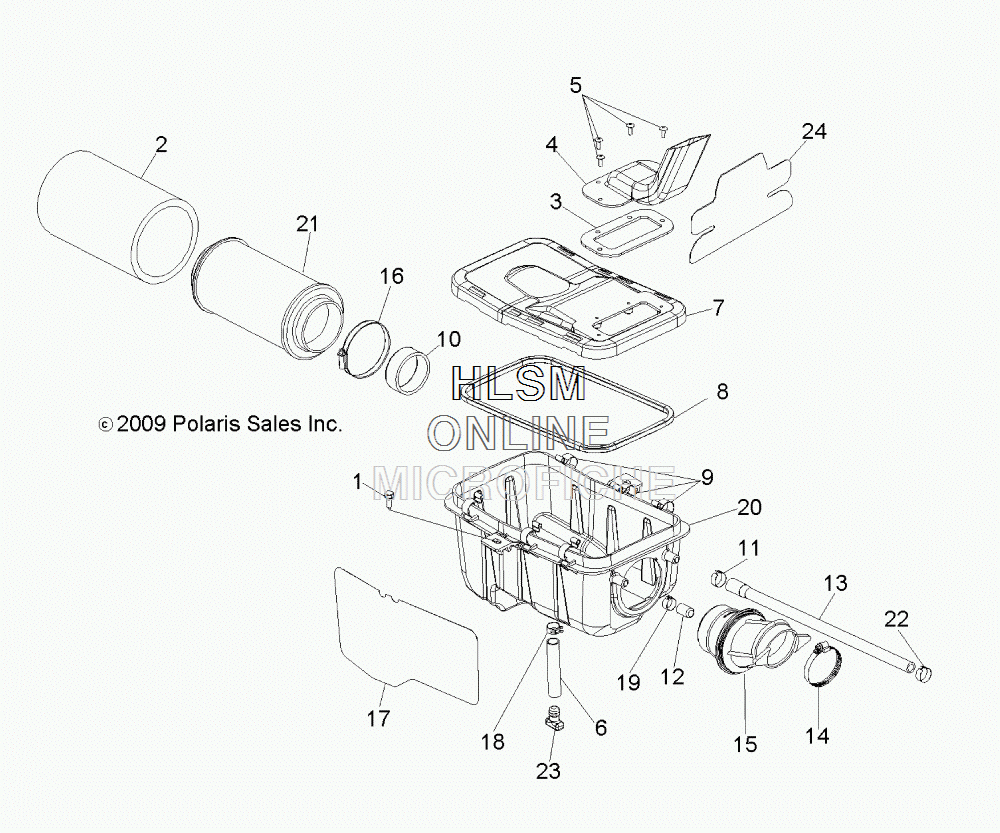

AIR INTAKE SYSTEM для Polaris TRAIL BLAZER 330 (A11NA32AA) - 2011 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
25811633 FILTER, PRE-CLEANER, SLEEVEFILTER, PRE-CLEANER, SLEEVE
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45438095 DUCT, INLET, AIRBOX COVERDUCT, INLET, AIRBOX COVER
-
57517317 SCREWSCREW
-
68450059-150 LINE, FUELLINE, FUEL
-
75432868 COVER, AIR BOXCOVER, AIR BOX
-
85812829 SEAL, COVERSEAL, COVER
-
95242044 CLIPCLIP
-
105433847 SLEEVE, CARB, INNERSLEEVE, CARB, INNER
-
117080699 CLAMP, HOSECLAMP, HOSE
-
125433396 CAP, ENDCAP, END
-
135411866 HOSE, BREATHERHOSE, BREATHER
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155438094 BOOT, CARBURETORBOOT, CARBURETOR
-
167080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
175813042 FOILFOIL
-
187080650 CLAMP, HOSECLAMP, HOSE
-
197080534 CLAMP, HOSECLAMP, HOSE
-
205433387 BOX, AIR INTAKEBOX, AIR INTAKE
-
217080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
227080694 CLAMP, HOSECLAMP, HOSE
-
235435299 PLUG, TRAPPLUG, TRAP
-
245813510 FLAP, AIR INTAKEFLAP, AIR INTAKE
