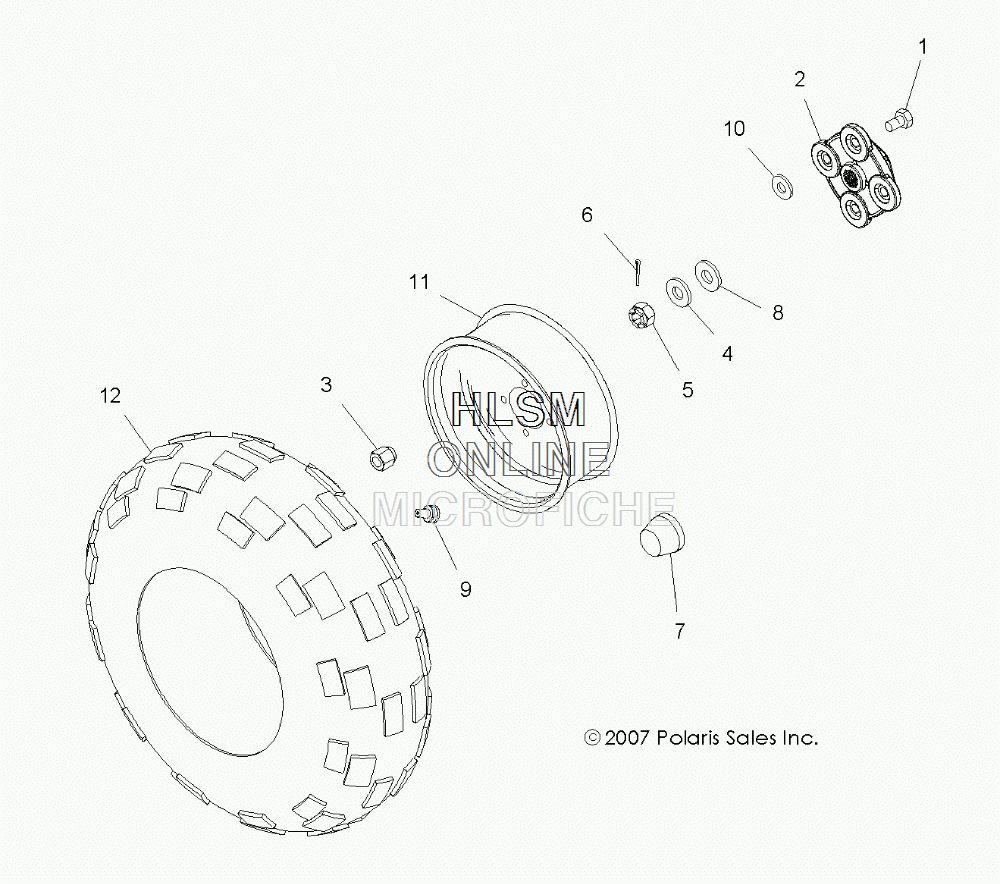

REAR WHEELS для Polaris TRAIL BLAZER 330 (A11NA32AA) - 2011 года выпуска
-
№АртикулНазвание
-
17512673 BOLTBOLT
-
25131777 HUB, REAR WHEEL, LARGE FLANGEHUB, REAR WHEEL, LARGE FLANGE
-
37542714 NUTNUT
-
47555796 WASHER, CONEWASHER, CONE
-
57543005 NUT, CASTLENUT, CASTLE
-
67661404 PIN, COTTERPIN, COTTER
-
75413427 COVER, DUST, HUBCOVER, DUST, HUB
-
87555745 WASHERWASHER
-
91525017 VALVE, RIMVALVE, RIM
-
107670081 PUSHNUT, BOLTPUSHNUT, BOLT
-
111520183-067 RIM, REAR (BLACK)RIM, REAR (BLACK)
-
125412323 TIRE, REAR, 22X11-10TIRE, REAR, 22X11-10
