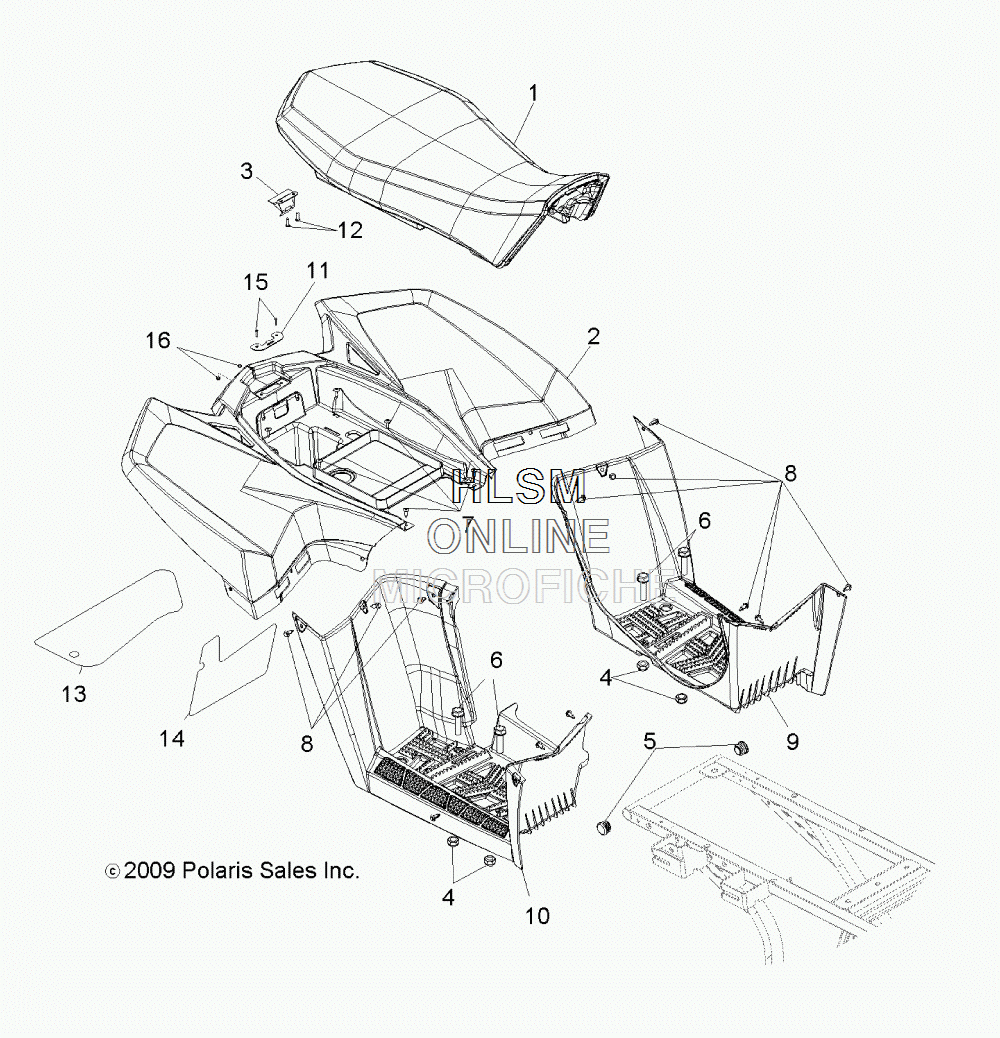

FENDER - REAR W/ SEAT для Polaris TRAIL BLAZER 330 (A11NA32AA) - 2011 года выпуска
-
№АртикулНазвание
-
12684296-070 ASM., SEAT (BLACK) (INCL. 3,12)ASM., SEAT (BLACK) (INCL. 3,12)
-
12684337 ASM., COVER (BLACK)ASM., COVER (BLACK)
-
25437894-293 CAB, REAR (INDY RED)CAB, REAR (INDY RED)
-
35253471 LATCH, SPRING, SEATLATCH, SPRING, SEAT
-
47542122 NUT, NYLOKNUT, NYLOK
-
55432831 PLUG, END CAP, RIBBEDPLUG, END CAP, RIBBED
-
67517230 SCREWSCREW
-
77518280 SCREWSCREW
-
87661855 RIVETRIVET
-
95437914-070 FOOTWELL (LEFT) (BLACK)FOOTWELL (LEFT) (BLACK)
-
105437915-070 FOOTWELL (RIGHT) (BLACK)FOOTWELL (RIGHT) (BLACK)
-
115253308 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
127512026 SCREWSCREW
-
135813555 FOILFOIL
-
145813556 FOILFOIL
-
157518281 SCREWSCREW
-
167518287 NUTNUT
