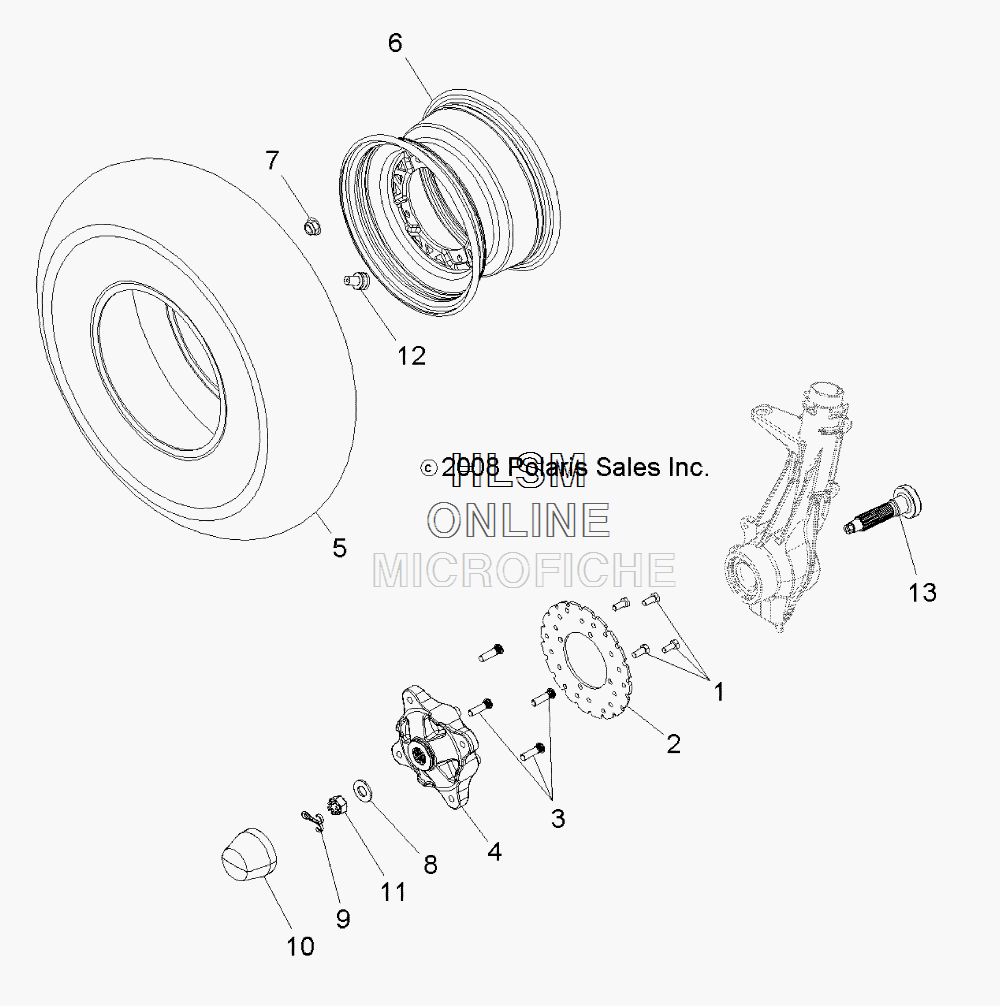

FRONT WHEELS для Polaris TRAIL BLAZER 330 (A11NA32AA) - 2011 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC, BRAKEDISC, BRAKE
-
37518378 STUDSTUD
-
45134310 HUB, WHEELHUB, WHEEL
-
55413768 TIRE, 23X8-12TIRE, 23X8-12
-
61520269-067 RIM, FRONT (BLACK)RIM, FRONT (BLACK)
-
77547237 NUT, FLANGENUT, FLANGE
-
87556004 WASHERWASHER
-
97661402 PIN, COTTERPIN, COTTER
-
105413427 COVER, DUST, HUBCOVER, DUST, HUB
-
117542810 NUTNUT
-
121525017 VALVE, RIMVALVE, RIM
-
135136927 SPINDLE, FRONTSPINDLE, FRONT
