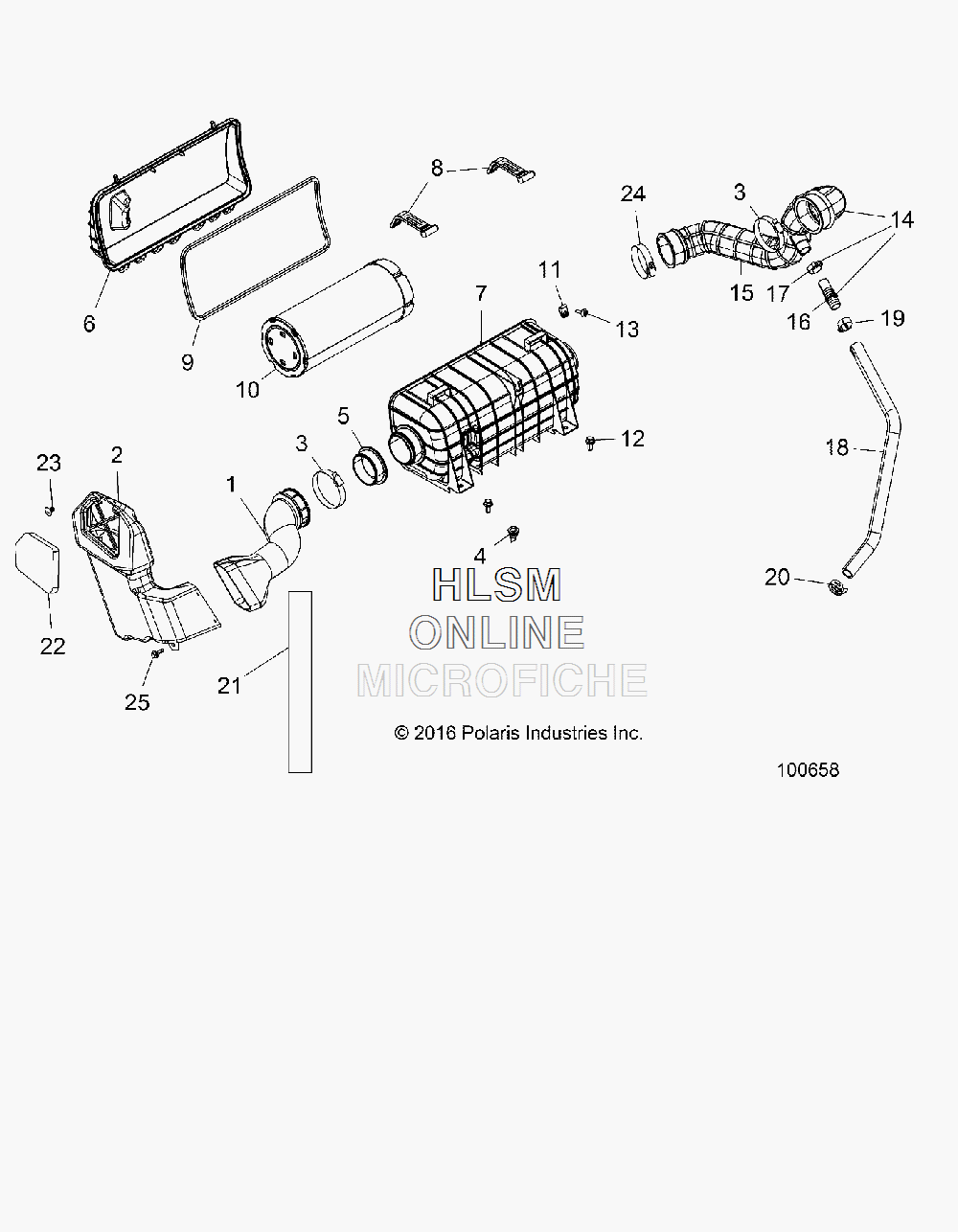

AIR INTAKE SYSTEM для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
I5452344 DUCT-INTAKE,AIRBOXDUCT-INTAKE,AIRBOX
-
25450728 BOX-INTAKE,ENGINE,RHBOX-INTAKE,ENGINE,RH
-
37080439 CLAMP-HOSE,3.25-SSCLAMP-HOSE,3.25-SS
-
45414472 PLUG-DRAINPLUG-DRAIN
-
55415155 SEAL-INTAKE,AIRBOXSEAL-INTAKE,AIRBOX
-
65451097 COVER-AIRBOXCOVER-AIRBOX
-
75451098 AIRBOXAIRBOX
-
85451099 STRAP-AIRBOXSTRAP-AIRBOX
-
95814054 SEAL-AIRBOXSEAL-AIRBOX
-
107082115 FILTER, AIR [STD]FILTER, AIR [STD]
-
102881063 K-FILTER-AIR,PERF,RZX [OPT]K-FILTER-AIR,PERF,RZX [OPT]
-
117547674 NUT-M6-1.0,U-TYPE (2.5-3.8)NUT-M6-1.0,U-TYPE (2.5-3.8)
-
127518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
137519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
141240975 ASM-INTAKE DUCTASM-INTAKE DUCT
-
155452345 DUCT-INTAKE,ENGDUCT-INTAKE,ENG
-
167052580 FITTING-3/4 DOUBLE BARBFITTING-3/4 DOUBLE BARB
-
177081903 CLAMP-HOSECLAMP-HOSE
-
185415564 HOSE-VENT,ENGHOSE-VENT,ENG
-
197080614 CLAMP-HOSE WORM GEAR 1.25CLAMP-HOSE WORM GEAR 1.25
-
207080841 SPRINGBAND-CLAMP 27/12,GREENSPRINGBAND-CLAMP 27/12,GREEN
-
215814033 SEAL, FOAMSEAL, FOAM
-
225814026 FILTER, INTAKE, FOAMFILTER, INTAKE, FOAM
-
237670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
247080446 CLAMP-HOSE, 2.75"-SSCLAMP-HOSE, 2.75"-SS
-
257518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
