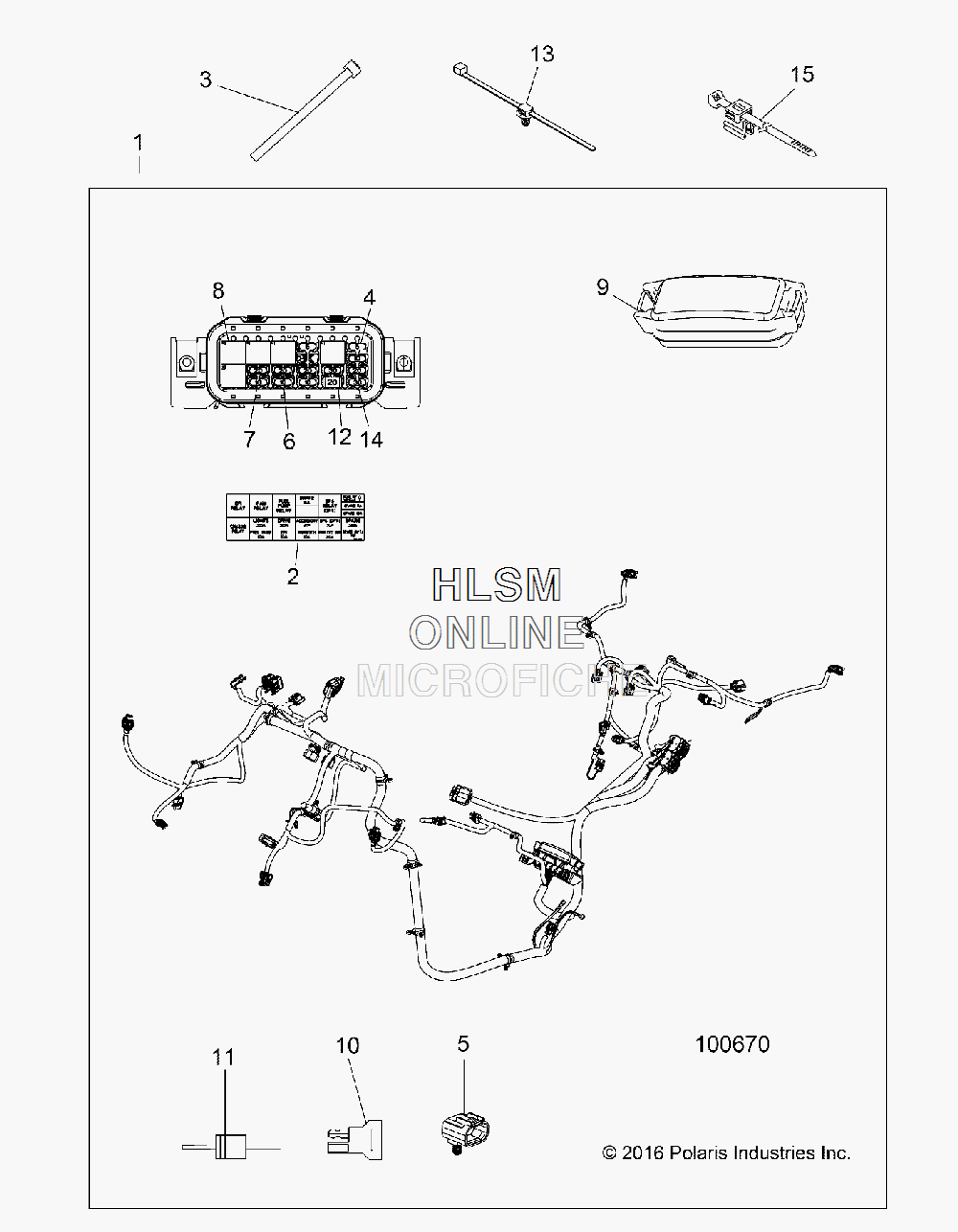

WIRE HARNESS для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
12413565 HARNESS-CHASSIS,ACE 900 ETC PSHARNESS-CHASSIS,ACE 900 ETC PS
-
27183182 LABEL, FUSE BOXLABEL, FUSE BOX
-
37080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
44011652 FUSE, 5AMP MINIBLADEFUSE, 5AMP MINIBLADE
-
54012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
62434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
72434016 FUSE, IGNITION, 10 AMPFUSE, IGNITION, 10 AMP
-
84011283 RELAY, SEALEDRELAY, SEALED
-
94015011 COVER, FUSEBOXCOVER, FUSEBOX
-
102410000 DIODE, 6 AMPDIODE, 6 AMP
-
112411035 DIODE, 6 AMP W/TERMINALSDIODE, 6 AMP W/TERMINALS
-
124011372 BREAKER, 20 AMPBREAKER, 20 AMP
-
137081496 CLIP, ROUTINGCLIP, ROUTING
-
142434015 FUSE, MAIN, 30 AMPFUSE, MAIN, 30 AMP
-
157081876 CLIP-EDGE,SIDE W/STRAPCLIP-EDGE,SIDE W/STRAP
