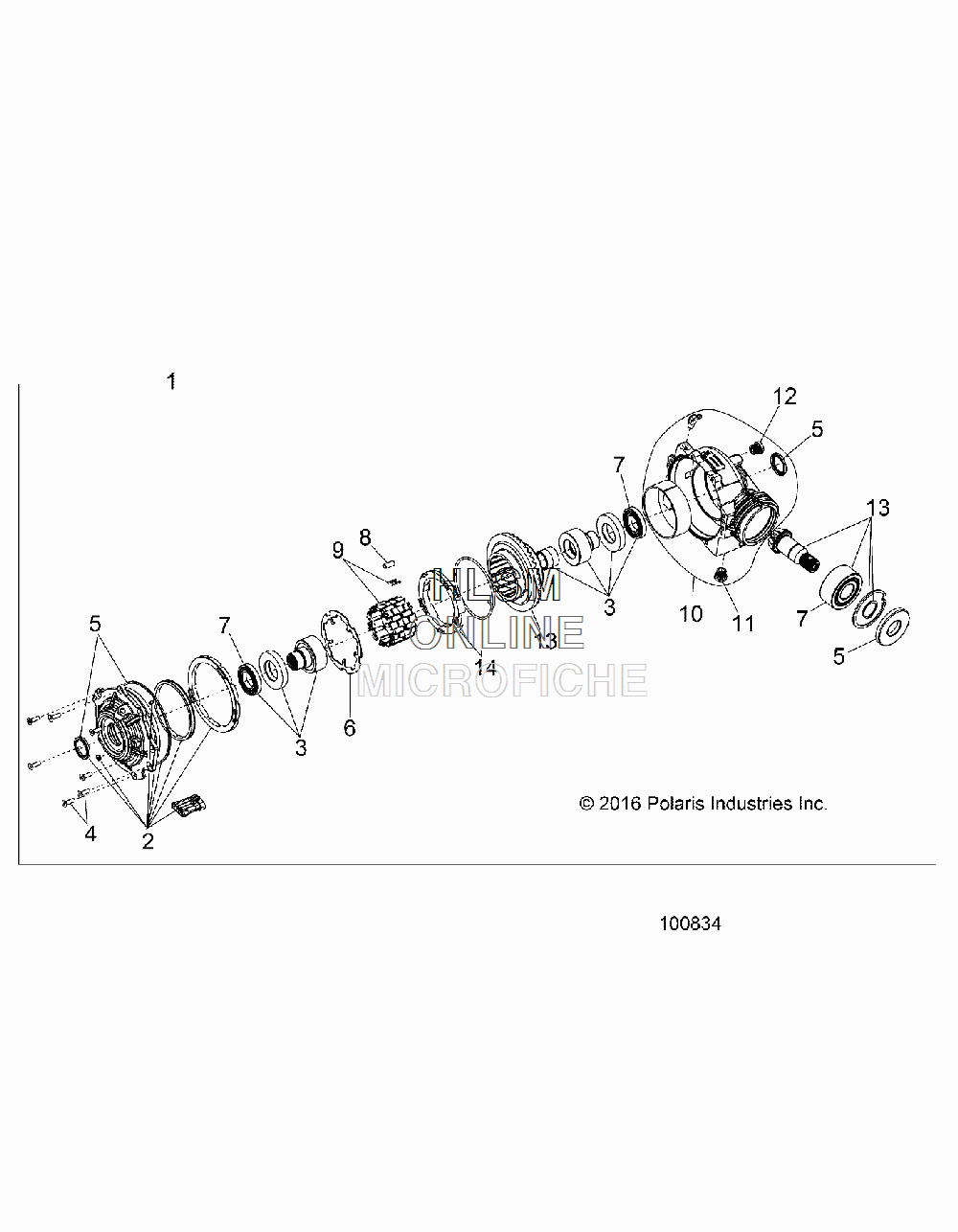

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
11333751 ASM., GEARCASE, FRONTASM., GEARCASE, FRONT
-
23235168 ASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBINGASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING
-
33235169 KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACERKIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER
-
43235170 KIT, FASTENER W/ALL FASTENERSKIT, FASTENER W/ALL FASTENERS
-
53235171 KIT, SEAL REPAIR W/ALL SEALSKIT, SEAL REPAIR W/ALL SEALS
-
63235485 PLATE, ARMATUREPLATE, ARMATURE
-
73235174 BEARING, PINION W/ALL BEARINGSBEARING, PINION W/ALL BEARINGS
-
83235624 KIT, ROLLER W/COMPLETE SET OF ROLLERKIT, ROLLER W/COMPLETE SET OF ROLLER
-
93235917 ASSY, ROLL CAGE, ZINC CAGE AND CLIPSASSY, ROLL CAGE, ZINC CAGE AND CLIPS
-
103235440 KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUGKIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG
-
112203738 PLUG, DRAINPLUG, DRAIN
-
122203739 PLUG, FILLPLUG, FILL
-
133235628 KIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RINGKIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING
-
143235712 KIT, SPRING W/TORSION SPRING & SPRINT RETAINER ASSYKIT, SPRING W/TORSION SPRING & SPRINT RETAINER ASSY
