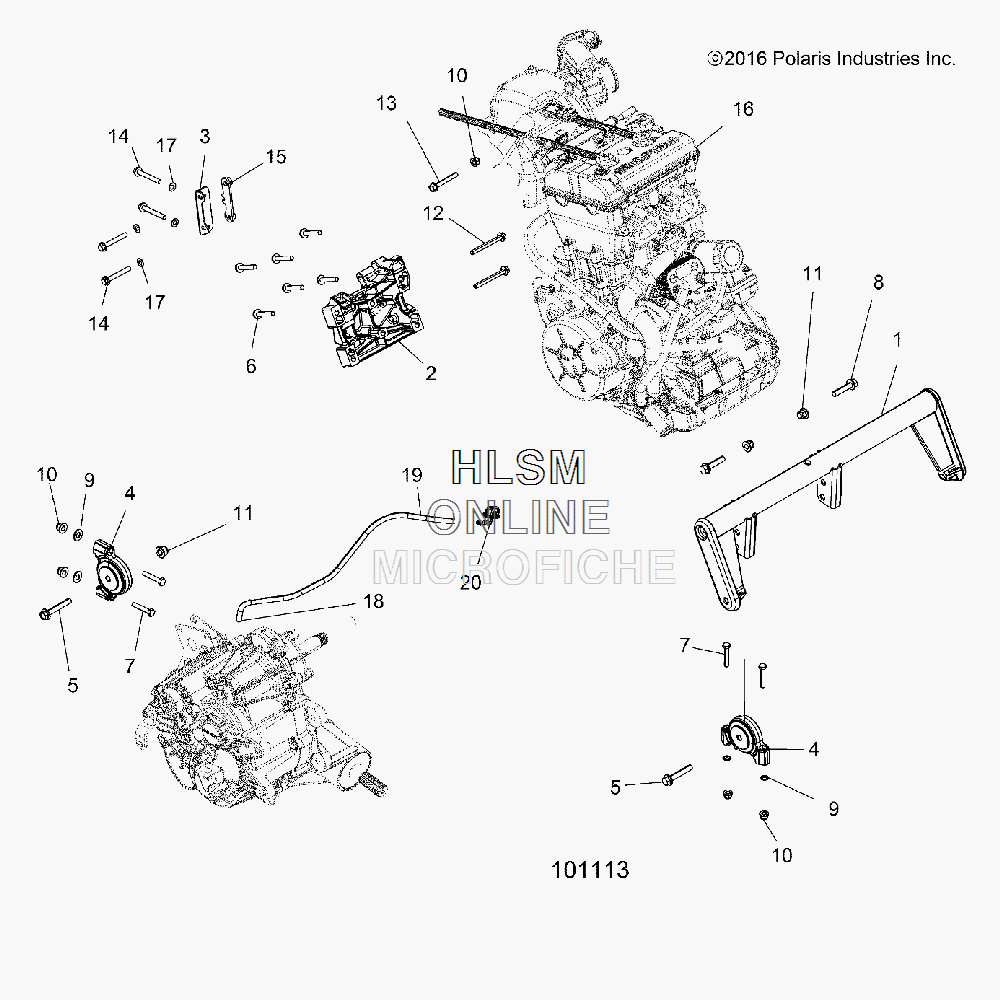

MOUNTING - ENGINE для Polaris ACE 900 EPS XC [A17DCE87AU] - 2017 года выпуска
-
№АртикулНазвание
-
11021392-329 MOUNT, ENGINE, BLACKMOUNT, ENGINE, BLACK
-
25137795 COUPLER, ENGINE, GEARCASECOUPLER, ENGINE, GEARCASE
-
35255238 BRACKET, COUPLER, TRANSMISSIONBRACKET, COUPLER, TRANSMISSION
-
41332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
57518826 SCR-HXFL-M10X1.5X60 8.8 ZY3SCR-HXFL-M10X1.5X60 8.8 ZY3
-
67520467 BOLT-M10X1.5X60MM8.8HEXDRILOCKBOLT-M10X1.5X60MM8.8HEXDRILOCK
-
77519097 SCREWSCREW
-
87519332 SCREWSCREW
-
97547030 NUT, PALNUT, PAL
-
107547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
117547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127519043 SCREWSCREW
-
137519298 SCREWSCREW
-
147518595 SCREWSCREW
-
155259964 WELD-NUT, PLATEWELD-NUT, PLATE
-
162207097 K-LONG BLOCK 875 ACEK-LONG BLOCK 875 ACE
-
177556153 WASHERWASHER
-
187081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
198450040-600 FUEL LINEFUEL LINE
-
205453464 FITTING-VENT LINE,90FITTING-VENT LINE,90
