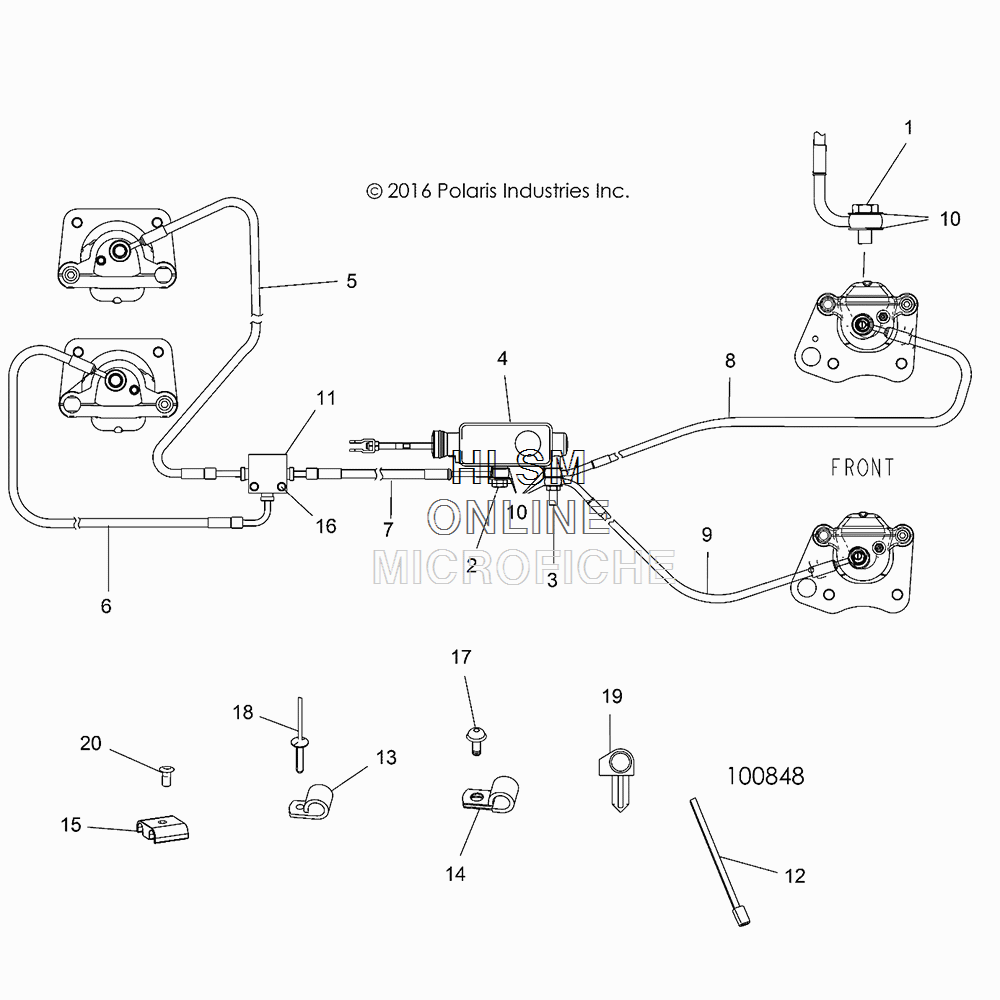

BRAKE LINES AND MASTER CYLINDER для Polaris ACE 500 SOHC [A18DAA50B7] - 2018 года выпуска
-
№АртикулНазвание
-
11910499 BOLT, BANJOBOLT, BANJO
-
21910958 BOLT, BANJOBOLT, BANJO
-
34014225 SWITCH-BRK,M10X1.25,DBL,SEALEDSWITCH-BRK,M10X1.25,DBL,SEALED
-
41912656 ASM-M/CYL,TANDEM,5/8,SHORT,FLGASM-M/CYL,TANDEM,5/8,SHORT,FLG
-
51912679 LINE-BRK,RL,36,20F,70B,225,JFLINE-BRK,RL,36,20F,70B,225,JF
-
61912680 LINE-BRK,RR,43,90F,70B,45,JFLINE-BRK,RR,43,90F,70B,45,JF
-
71912681 LINE-BRK,MCT,68,20SB,20F,45,JFLINE-BRK,MCT,68,20SB,20F,45,JF
-
81912756 LINE-BRK,FL,34,70B,45B,JFLINE-BRK,FL,34,70B,45B,JF
-
91912757 LINE-BRK,FR,31,70B,45B,JFLINE-BRK,FR,31,70B,45B,JF
-
105413212 SEALSEAL
-
117052293 FITTING, TEEFITTING, TEE
-
127081916 STRAP, PANDUIT, DOUBLE LOOPSTRAP, PANDUIT, DOUBLE LOOP
-
137080499 CLAMP, CABLECLAMP, CABLE
-
147080683 CLAMP, HOSECLAMP, HOSE
-
157670126 CLIP, RETAINING, DUELCLIP, RETAINING, DUEL
-
167512025 SCREWSCREW
-
177512084 SCREWSCREW
-
187621323 RIVETRIVET
-
197670102 CLIPCLIP
-
207517756 SCREWSCREW
