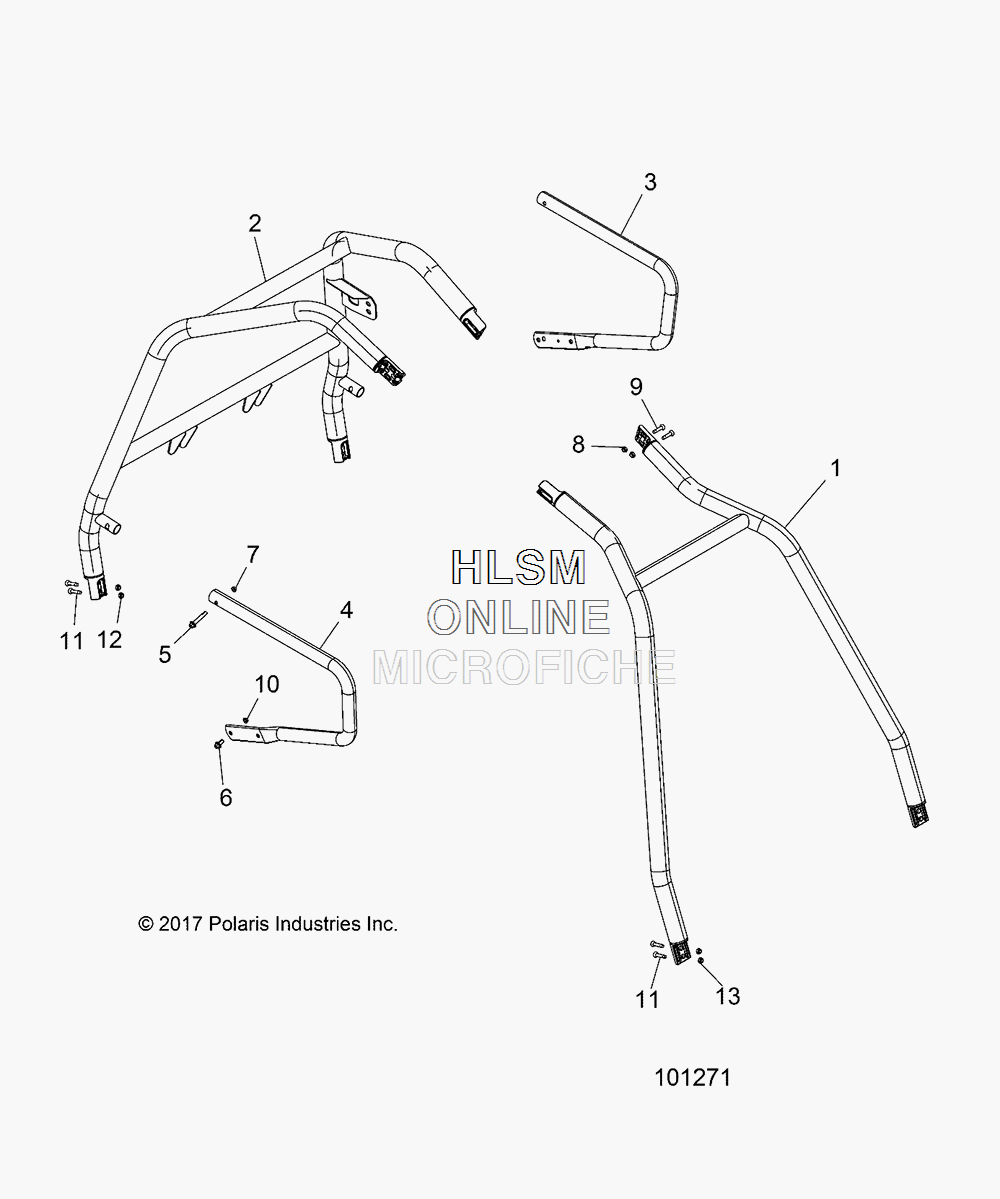

CAB FRAME AND SIDE BARS для Polaris ACE 500 SOHC [A18DAA50B7] - 2018 года выпуска
-
№АртикулНазвание
-
11022573-458 TUBE, ROPS, FRONT, MATTE BLACKTUBE, ROPS, FRONT, MATTE BLACK
-
21023434-458 WELD-TUBE,ROPS,REAR,M.BLACKWELD-TUBE,ROPS,REAR,M.BLACK
-
35339103-458 BOLSTER, LH, MATTE BLACKBOLSTER, LH, MATTE BLACK
-
45339104-458 BOLSTER, RH, MATTE BLACKBOLSTER, RH, MATTE BLACK
-
57516732 SCREWSCREW
-
67519243 SCREWSCREW
-
77547317 NUT, FLANGENUT, FLANGE
-
87542451 NUT, NYLOKNUT, NYLOK
-
97517935 SCREWSCREW
-
107547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
117519844 SCR-SH-M10X1.5X30 8.8 ZPBSCR-SH-M10X1.5X30 8.8 ZPB
-
127547385 NUT-NY INS,M10X1.5,HEX,ZINC,YWNUT-NY INS,M10X1.5,HEX,ZINC,YW
-
137547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
