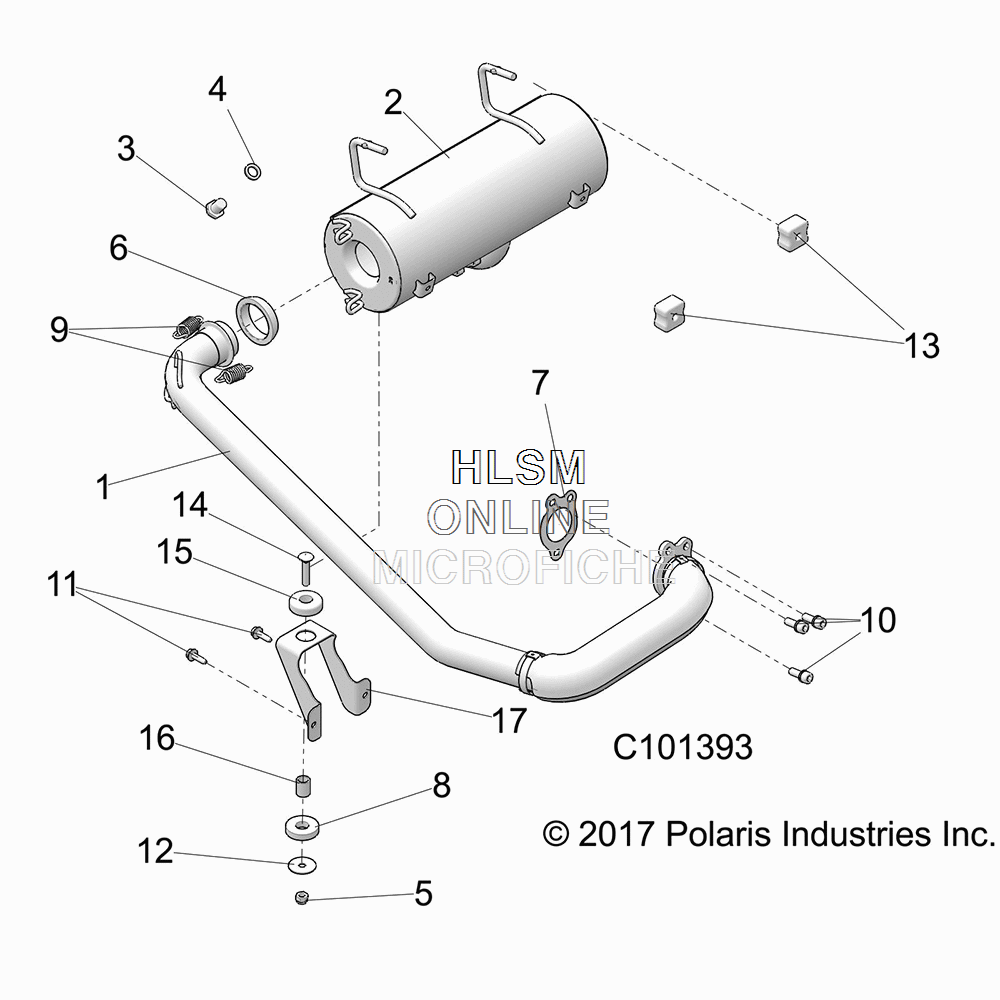

EXHAUST SYSTEM для Polaris ACE 500 SOHC [A18DAA50B7] - 2018 года выпуска
-
№АртикулНазвание
-
11262956 ASM-EXHAUST PIPE,450ASM-EXHAUST PIPE,450
-
21263118 WELD-EXHAUST SILENCER (INCL. 3,4)WELD-EXHAUST SILENCER (INCL. 3,4)
-
37520756 BOLT-1/2-20X5/8 HXHDCAP-GR5-PBOLT-1/2-20X5/8 HXHDCAP-GR5-P
-
47557077 WASHER-CLEAN OUT .51X75X.09WASHER-CLEAN OUT .51X75X.09
-
57542324 NUT, NYLOKNUT, NYLOK
-
63610181 SEALSEAL
-
75263806 GASKET-EXHAUST SEALINGGASKET-EXHAUST SEALING
-
85414945 WSHR-15.4X38.1X7.9 RUBBERWSHR-15.4X38.1X7.9 RUBBER
-
97041789 SPRINGSPRING
-
107518984 SCR-M8X1.25X22,HX/SOSCR-M8X1.25X22,HX/SO
-
117518529 SCREWSCREW
-
127555716 WASHERWASHER
-
135413383 GROMMETGROMMET
-
147515316 BOLT, CARRIAGEBOLT, CARRIAGE
-
155414946 DAMPER-VIBRATIONDAMPER-VIBRATION
-
165010192 BUSHINGBUSHING
-
175258177 MOUNT, EXHAUST, LOWERMOUNT, EXHAUST, LOWER
