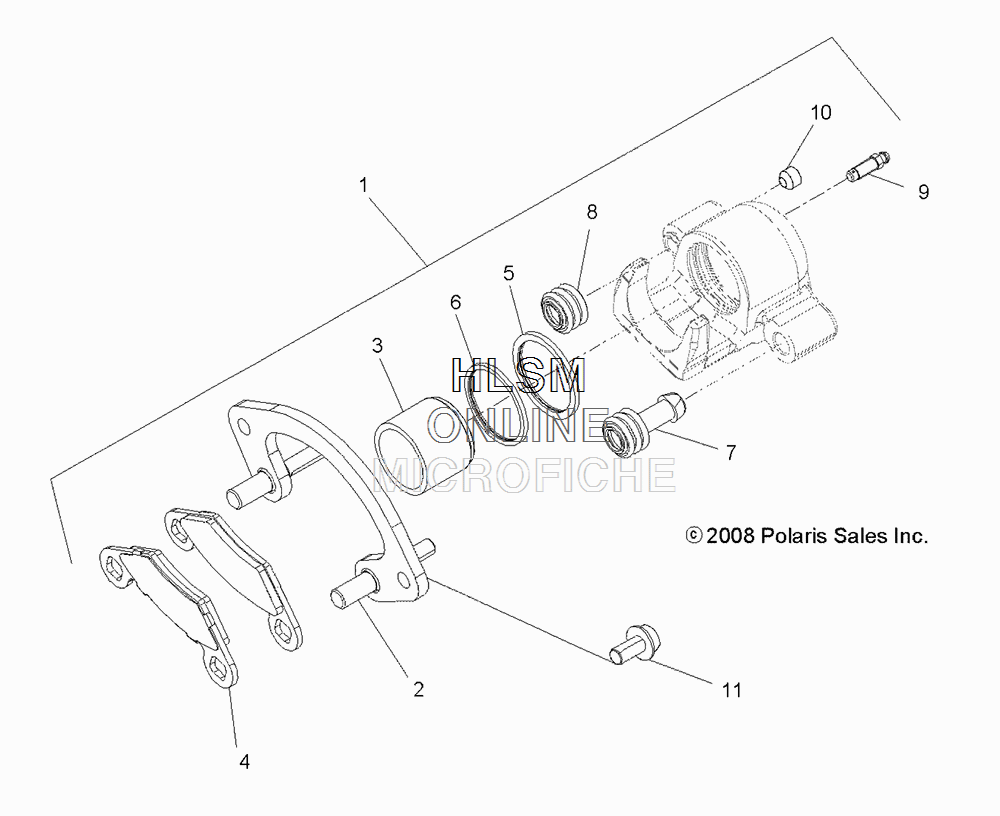

BRAKE - FRONT CALIPER для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
11911301 ASM., BRAKE CALIPER,1.25 IN, LEFT HANDASM., BRAKE CALIPER,1.25 IN, LEFT HAND
-
11911302 ASM., BRAKE CALIPER,1.25 IN, RIGHT HANDASM., BRAKE CALIPER,1.25 IN, RIGHT HAND
-
21911225 ASM., CALIPER MOUNTASM., CALIPER MOUNT
-
35132405 PISTON, CALIPER,1.25 INPISTON, CALIPER,1.25 IN
-
42203628 KIT, BRAKE PAD,246MM [INCL. 2 PADS]KIT, BRAKE PAD,246MM [INCL. 2 PADS]
-
55411596 SEAL, CALIPER, INNER,1.25 INSEAL, CALIPER, INNER,1.25 IN
-
65411597 SEAL, CALIPER, OUTER,1.25 INSEAL, CALIPER, OUTER,1.25 IN
-
75412505 BOOT, PIN BUSHINGBOOT, PIN BUSHING
-
85412506 BOOT, PIN SEALBOOT, PIN SEAL
-
97081343 SCREW, BLEEDERSCREW, BLEEDER
-
107518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
117518760 BOLT, FLANGE [CALIPER MOUNTING]BOLT, FLANGE [CALIPER MOUNTING]
