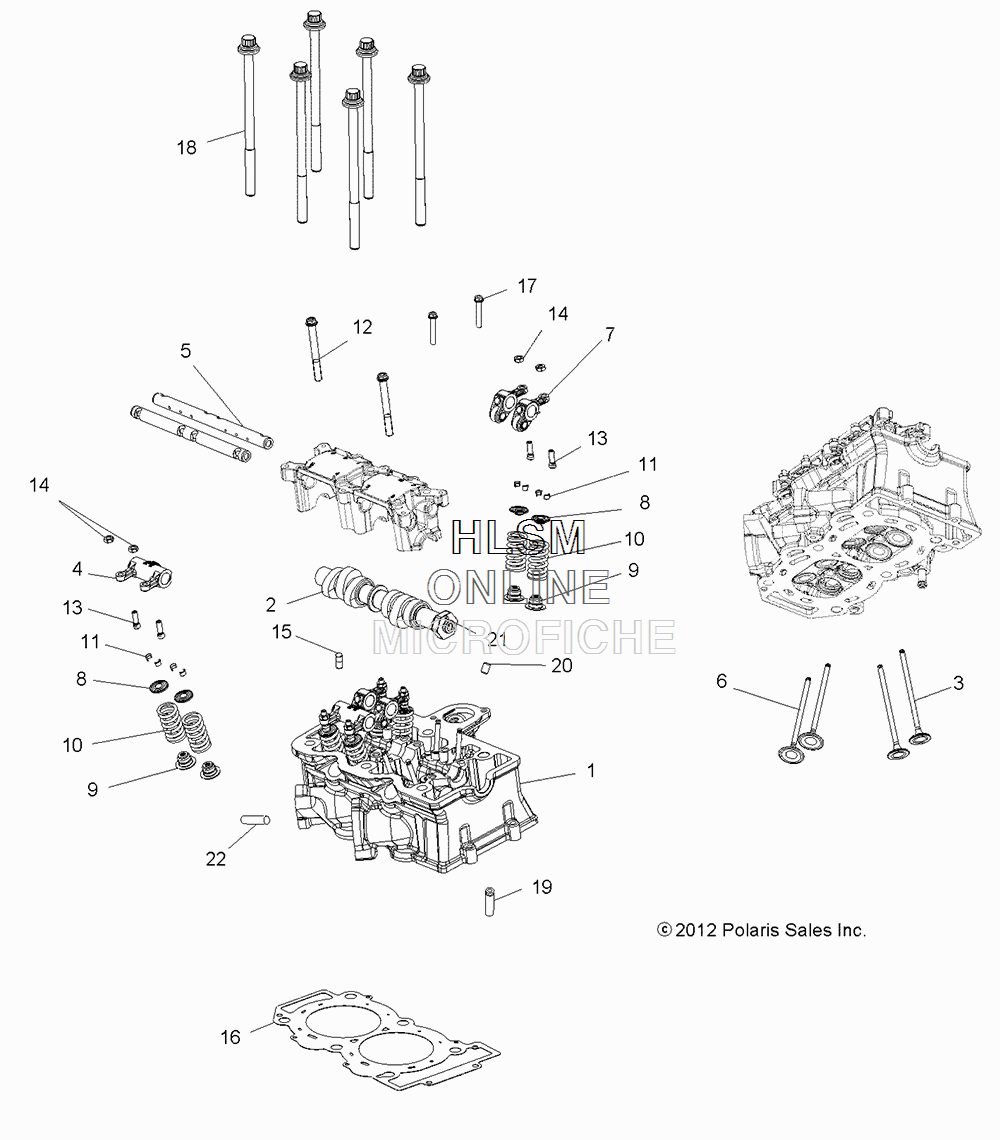

CYLINDER HEAD - CAM - VALVES для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
13022549 ASM., CYLINDER HEAD [INCL. CAMSHAFT CARRIER, PLUG]ASM., CYLINDER HEAD [INCL. CAMSHAFT CARRIER, PLUG]
-
17052532 PLUGPLUG
-
23022643 ASM., CAM SHAFT [INCL. 21]ASM., CAM SHAFT [INCL. 21]
-
33022589 VALVE, EXHAUST,28MMVALVE, EXHAUST,28MM
-
31204589 ASM-ROCKER ARM,EXH,IC [INCL. ARM, SCREW, NUT]ASM-ROCKER ARM,EXH,IC [INCL. ARM, SCREW, NUT]
-
53022728 ASM., SHAFT, ROCKERASM., SHAFT, ROCKER
-
63022203 VALVE, INTAKE,33MMVALVE, INTAKE,33MM
-
71204588 ASM-ROCKER ARM,INT,IC [INCL. ARM, SCREW, NUT]ASM-ROCKER ARM,INT,IC [INCL. ARM, SCREW, NUT]
-
83021865 RETAINER, VALVERETAINER, VALVE
-
93610165 SEALSEAL
-
107043947 SPRING, VALVESPRING, VALVE
-
117081470 KEEPER, VALVEKEEPER, VALVE
-
127519293 SCREWSCREW
-
135136463 SCREW, LASH ADJUSTERSCREW, LASH ADJUSTER
-
147547335 NUT, LOCKNUT, LOCK
-
152540080 JET, OILJET, OIL
-
165813933 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
177518578 SCREWSCREW
-
187519219 BOLTBOLT
-
193022348 GUIDE, VALVE 5.5MMGUIDE, VALVE 5.5MM
-
205137624 PIN, DOWELPIN, DOWEL
-
225132040 STUD, EXHAUST MOUNTSTUD, EXHAUST MOUNT
