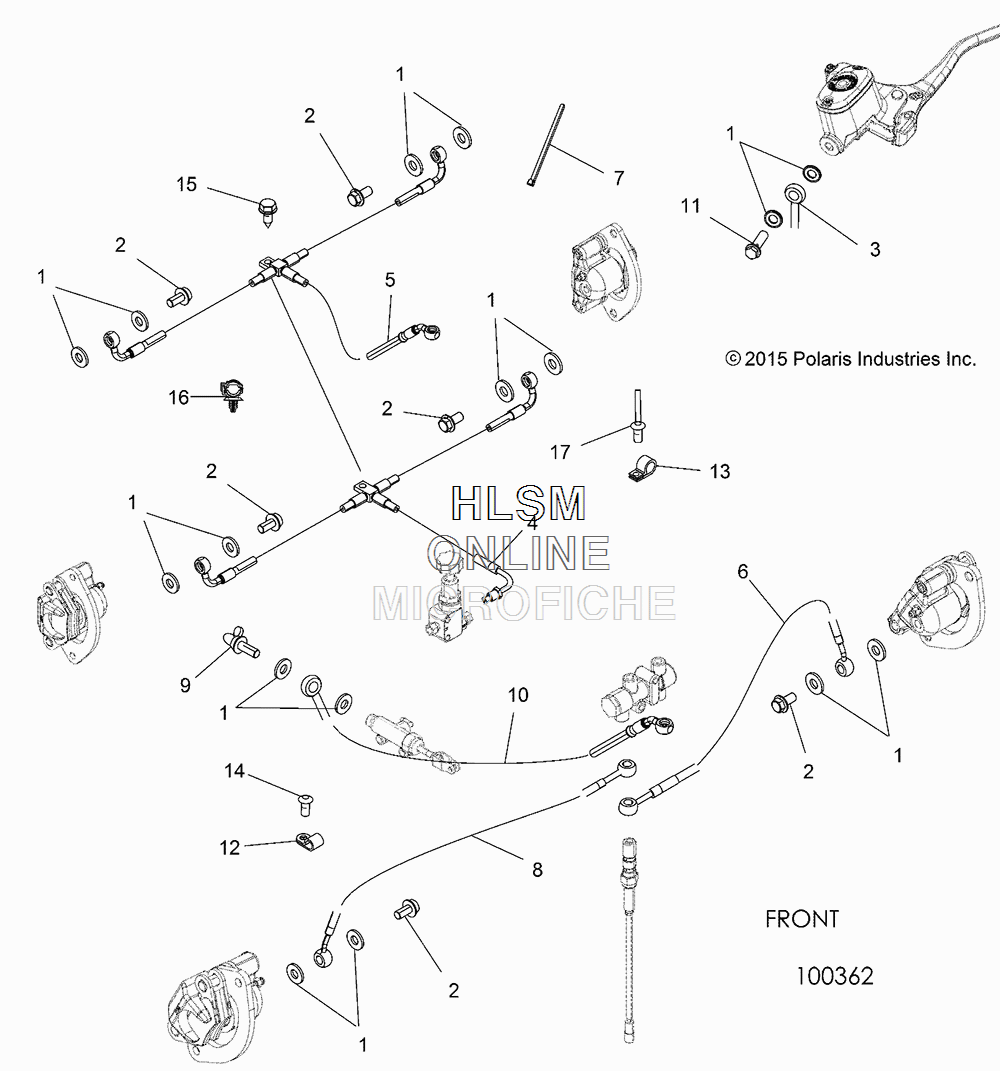

BRAKE LINES для Polaris SPORTSMAN 1000 XP ZUG (HAVASU RED PEARL) [A18SXS95FR] - 2018 года выпуска
-
№АртикулНазвание
-
15413212 SEALSEAL
-
21910499 BOLT, BANJO,10MMX1.00BOLT, BANJO,10MMX1.00
-
31912659 LINE, HAND TO DIST.LINE, HAND TO DIST.
-
41913019 LINE-BRK,REAR SVC,3WAY,GLINE-BRK,REAR SVC,3WAY,G
-
51913018 LINE-BRK,REAR AUX,3WAY,GLINE-BRK,REAR AUX,3WAY,G
-
61913017 LINE-BRK,FR,29,30B,0B,50°LINE-BRK,FR,29,30B,0B,50°
-
77080138 CABLE TIECABLE TIE
-
81913016 LINE-BRK,FL,29,30B,30B,297.5°LINE-BRK,FL,29,30B,30B,297.5°
-
91910886 BOLT, BANJO W/BLEEDERBOLT, BANJO W/BLEEDER
-
101912660 LINE, FOOT TO DIST.,36,45B,90SB,180°LINE, FOOT TO DIST.,36,45B,90SB,180°
-
111910958 BOLT, BANJO, 10MM X 1.25BOLT, BANJO, 10MM X 1.25
-
127081246 CLAMP, WIRE/TUBE, .25 DIACLAMP, WIRE/TUBE, .25 DIA
-
137080653 CLAMP, HOSE,1 INCLAMP, HOSE,1 IN
-
147518176 SCREWSCREW
-
157518529 SCREWSCREW
-
164020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
177621330 RIVETRIVET
