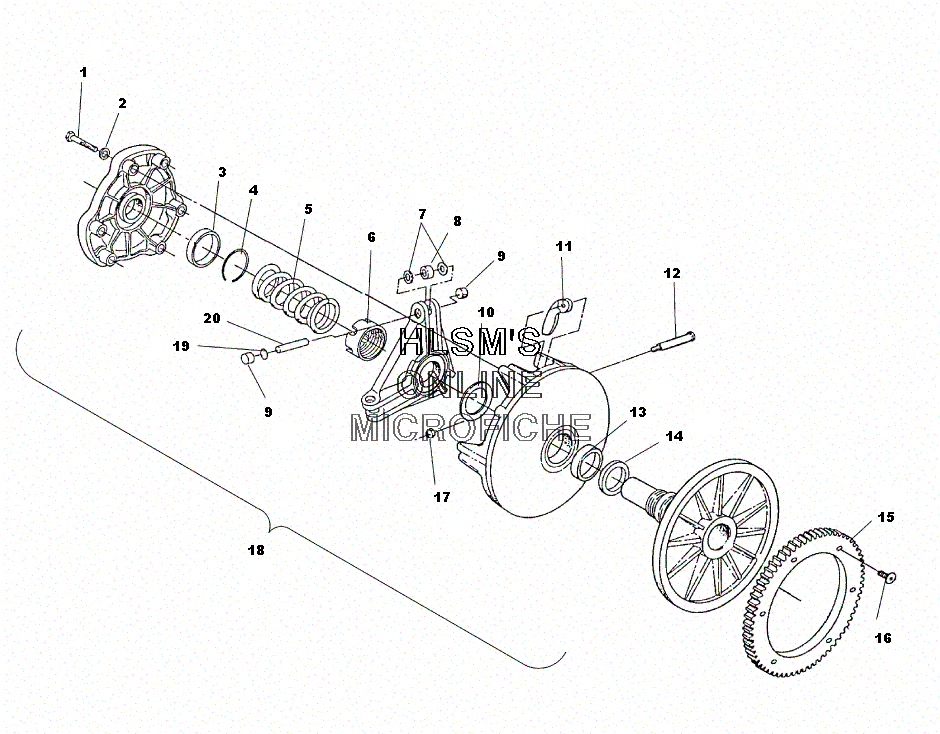

CLUTCH - DRIVE для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK, WASHERLOCK, WASHER
-
33576516 COVER, BEARINGCOVER, BEARING
-
47710417 RING, RETAINING BOLTRING, RETAINING BOLT
-
57041148 SPRING, CLUTCH (GOLD)SPRING, CLUTCH (GOLD)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210752 SPACER (.020'') (OPT)SPACER (.020'') (OPT)
-
105210753 SPACER (.032'') (OPT)SPACER (.032'') (OPT)
-
105210754 SPACER (.050'') (OPT)SPACER (.050'') (OPT)
-
105242981 SPACER (.025'') (OPT)SPACER (.025'') (OPT)
-
111321528 WEIGHT/BUSHING ASSY.WEIGHT/BUSHING ASSY.
-
127515105 PIN, WEIGHT HARDENEDPIN, WEIGHT HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155131062 GEAR, RINGGEAR, RING
-
167515351 BOLT, RING GEARBOLT, RING GEAR
-
177541906 NUT FLEX LOCNUT FLEX LOC
-
181321737 CLUTCH, BASIC #88 (DRIVE) (LESS 5, 11)CLUTCH, BASIC #88 (DRIVE) (LESS 5, 11)
-
192200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
205020422 PIN, ROLLERPIN, ROLLER
