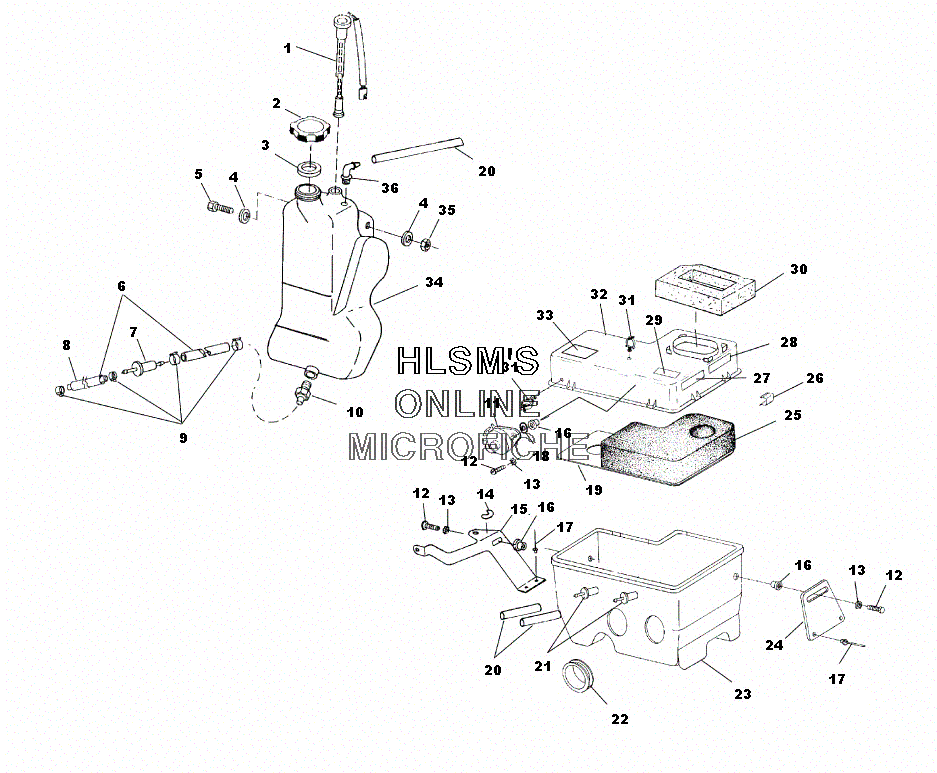

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска
-
№АртикулНазвание
-
14040040 SENSOR, OIL LEVEL W/CONNECTIONSENSOR, OIL LEVEL W/CONNECTION
-
25430779 CAP, OIL TANKCAP, OIL TANK
-
35810141 GASKET, OIL CAPGASKET, OIL CAP
-
47558302 WASHER, WROUGHTWASHER, WROUGHT
-
57512240 BOLTBOLT
-
68450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
72530009 FILTER, IN-LINEFILTER, IN-LINE
-
84010051 CONDUIT, CONVOL (30 CM)CONDUIT, CONVOL (30 CM)
-
97080307 CLAMPCLAMP
-
107052042 FITTING, OUTLETFITTING, OUTLET
-
127512279 SCREWSCREW
-
137552604 WASHERWASHER
-
147072151 DECAL, SHUT-OFF VALVEDECAL, SHUT-OFF VALVE
-
155241792-067 BRACKET, SIL./REM. FILLERBRACKET, SIL./REM. FILLER
-
167541923 NUT-WELLNUT-WELL
-
177661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
187555843 WASHER, WROUGHTWASHER, WROUGHT
-
195850075 PLATE, AIR SILENCERPLATE, AIR SILENCER
-
208450061-600 FUEL LINE (3MMX7MM) (OPT)FUEL LINE (3MMX7MM) (OPT)
-
217052077 FITTINGFITTING
-
225410271 BOOTBOOT
-
235432135 SILENCER, INTAKE, DRILLEDSILENCER, INTAKE, DRILLED
-
245211274 BRACKET, SILENCERBRACKET, SILENCER
-
251253102 BAFFLE ASSY.BAFFLE ASSY.
-
267670055 CLIP, AIR BOXCLIP, AIR BOX
-
277073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
287073426 DECAL, GREASINGDECAL, GREASING
-
297075351 DECAL, CAUTION AIRBOXDECAL, CAUTION AIRBOX
-
305811628 FOAM, AIRBOX CHIMNEYFOAM, AIRBOX CHIMNEY
-
314020139 CLIP, PLASTICCLIP, PLASTIC
-
325432243 COVER, SILENCERCOVER, SILENCER
-
337075359 DECAL, COOLER SYSTEMDECAL, COOLER SYSTEM
-
345431437 TANK, OILTANK, OIL
-
357542122 NUT, LOCKNUT, LOCK
-
367052095 FITTING (90 DEG 1/8)FITTING (90 DEG 1/8)
