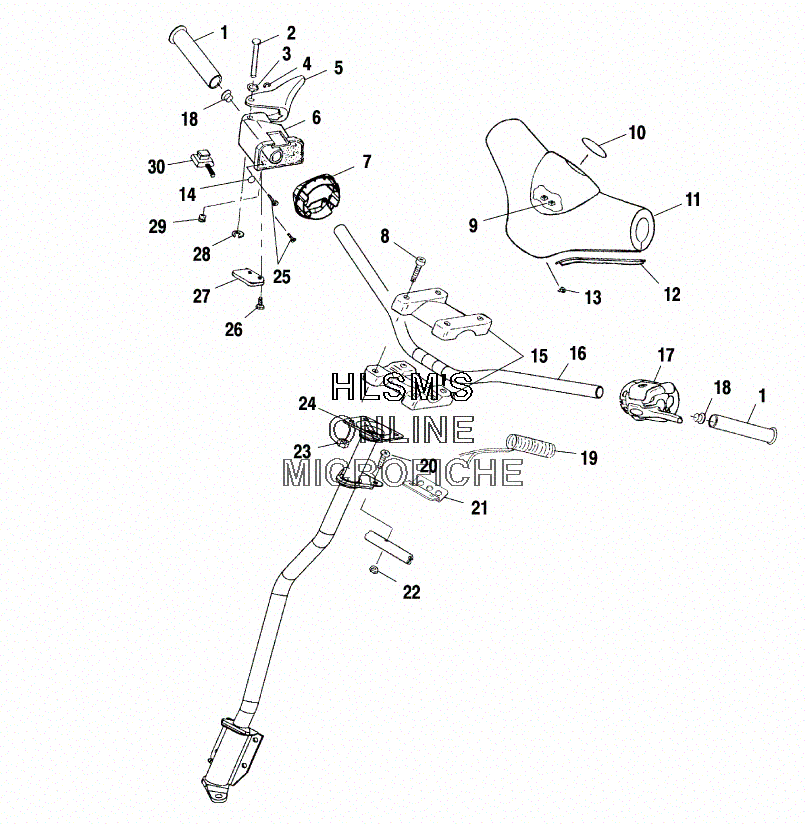

HANDLEBAR ASSEMBLY для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING, RINGRETAINING, RING
-
52010176 LEVER ASSY., HEATER HI/LO (38MM)LEVER ASSY., HEATER HI/LO (38MM)
-
55430638 LEVER, THROTTLELEVER, THROTTLE
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER-BLOCK, THROTTLEADAPTER-BLOCK, THROTTLE
-
87517238 SCREWSCREW
-
97670106 NUT, PUSH ONNUT, PUSH ON
-
105433522 EMBLEM-''STAR'', BEZEL HANDLE BAREMBLEM-''STAR'', BEZEL HANDLE BAR
-
115433159 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
125433161 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
134010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
147555727 RIVET BURRRIVET BURR
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP LO/MED/HIHEATER, GRIP LO/MED/HI
-
207517377 SCREWSCREW
-
215242553 PLATEPLATE
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241820555-067 STEERING POST (BLACK)STEERING POST (BLACK)
-
257511848 SCREW, SEMSSCREW, SEMS
-
267511858 SCREWSCREW
-
275432261 HOLDER, WIREHOLDER, WIRE
-
287710401 'E' RING'E' RING
-
297512465 SCREWSCREW
-
304110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
