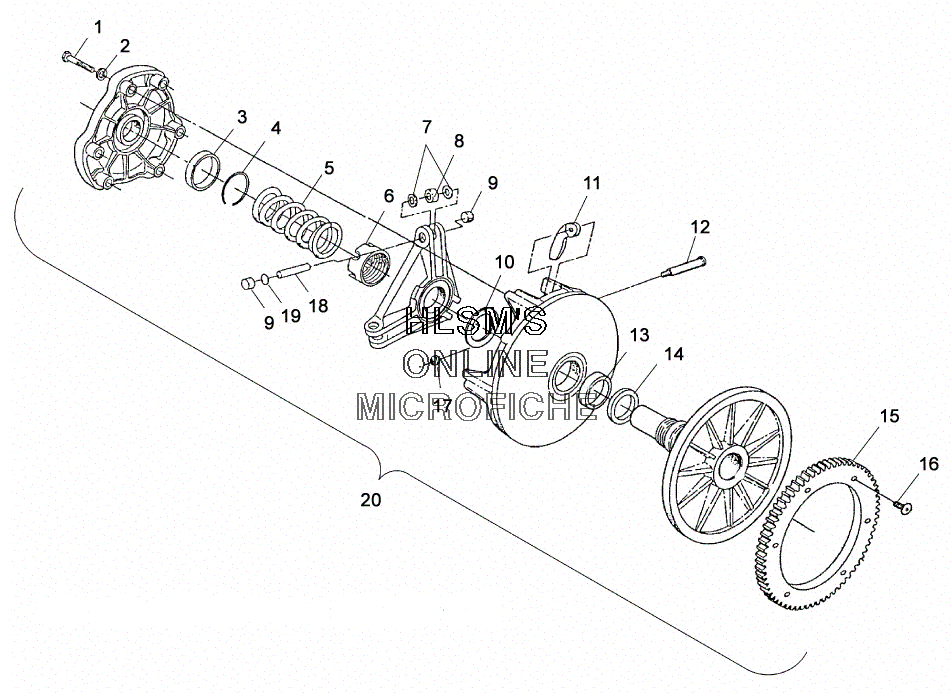

CLUTCH - DRIVE для Polaris 600 XC DELUXE (S00SD6DS) - 2000 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041781 SPRING, CLUTCH (DARK BLUE/WHITE)SPRING, CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210752 SPACER (.020'')SPACER (.020'')
-
105210753 SPACER (.032'')SPACER (.032'')
-
105210754 SPACER (.050'')SPACER (.050'')
-
105242981 SPACER (.025'')SPACER (.025'')
-
111321588 WT/BUSH.ASSYWT/BUSH.ASSY
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155131062 GEAR, RINGGEAR, RING
-
167515351 BOLT, RING GEARBOLT, RING GEAR
-
177541906 NUT FLEX LOCNUT FLEX LOC
-
185020422 PIN, ROLLER,PIN, ROLLER,
-
192200387 SHIM, DRIVE CLUTCH, KITSHIM, DRIVE CLUTCH, KIT
-
201321863 CLTCH, DRV, ASSY, BASIC (INCL. 1, 2, 4, 6, 8, 12, 18)CLTCH, DRV, ASSY, BASIC (INCL. 1, 2, 4, 6, 8, 12, 18)
-
202201169 REBUILD, KIT WIDE ROLLER (INCL. 7, 9, 12, 18)REBUILD, KIT WIDE ROLLER (INCL. 7, 9, 12, 18)
