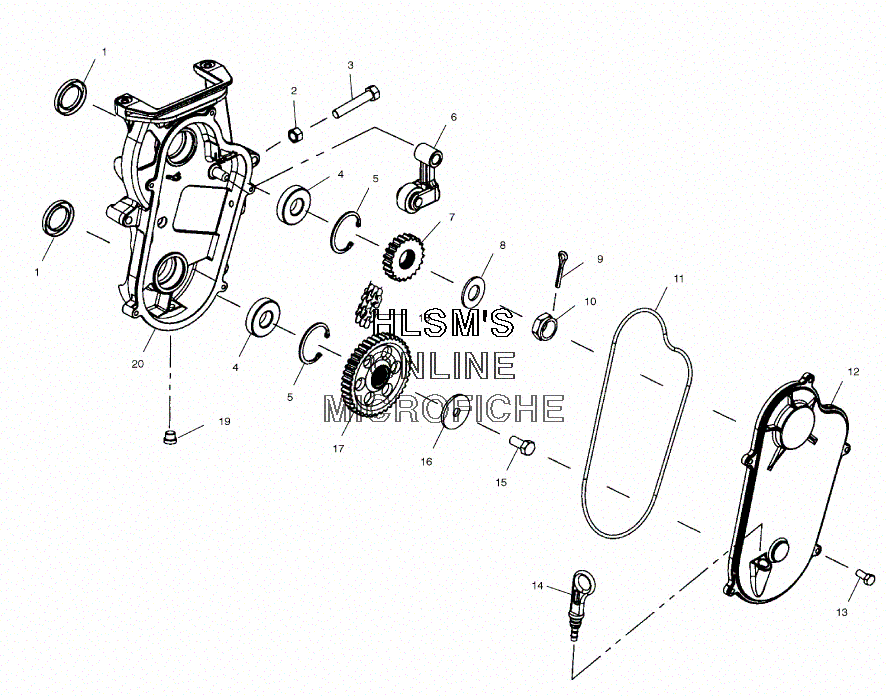

CHAINCASE ASSEMBLY для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
25132237 NUT-CHAIN ADJUSTER, 3/8-16NUT-CHAIN ADJUSTER, 3/8-16
-
37512470 SCREWSCREW
-
43514309 BEARING, BALLBEARING, BALL
-
57718406 RING, RETAININGRING, RETAINING
-
61332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
63553002 BEARINGBEARING
-
65630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
67558702 WASHER THRUSTWASHER THRUST
-
67662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
73221099 SPROCKET SPLINE (23TEETH 3/4W)SPROCKET SPLINE (23TEETH 3/4W)
-
87571620 WASHER, SLOTTEDWASHER, SLOTTED
-
97661401 COTTER PINCOTTER PIN
-
107542811 NUTNUT
-
115411497 GASKET, O-RING, CHAINCASEGASKET, O-RING, CHAINCASE
-
125132368 CVR, CHNCASE, 7. 92 CD, ALUMCVR, CHNCASE, 7. 92 CD, ALUM
-
137517675 SCREWSCREW
-
141332223 DIPSTICK ASSY.DIPSTICK ASSY.
-
157515350 SCREWSCREW
-
167571618 WASHERWASHER
-
173222108 SPROCKET (15/39 TEETH 3/4W) HYVOSPROCKET (15/39 TEETH 3/4W) HYVO
-
183221109 CHAIN, HYVO. 74P (3/4W)CHAIN, HYVO. 74P (3/4W)
-
197052115 PLUGPLUG
-
205132369 CHAINCASE-7. 92 CD, ALUMCHAINCASE-7. 92 CD, ALUM
