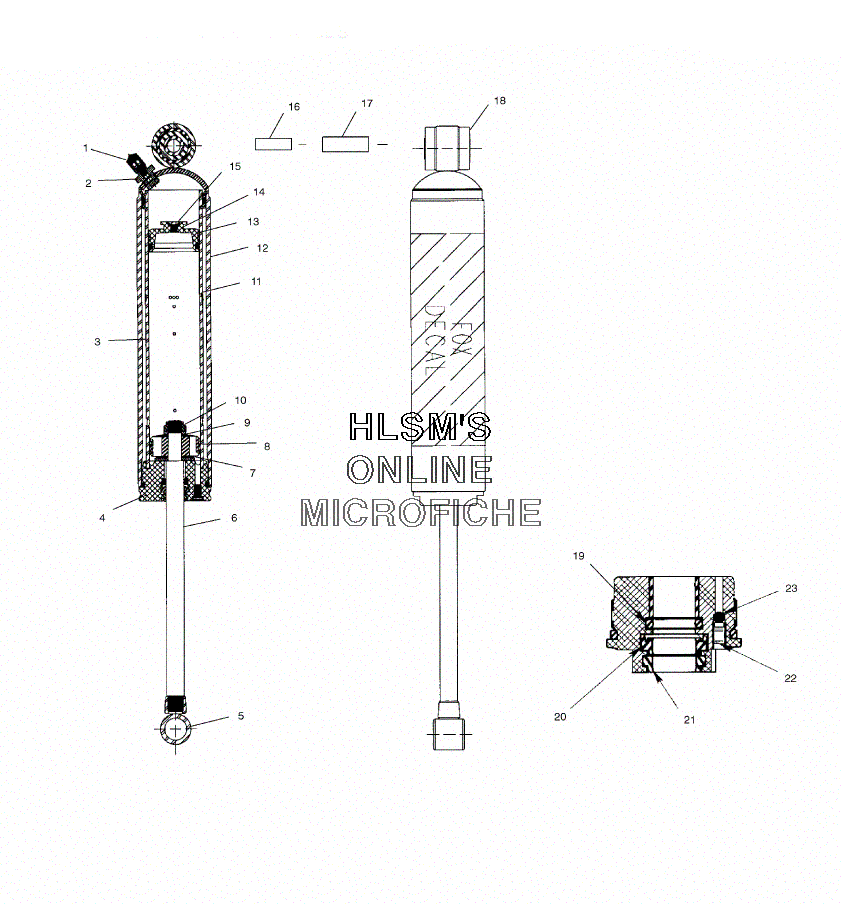

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
11500210 CAP, SHRADER VALVECAP, SHRADER VALVE
-
21500019 SCREWSCREW
-
21500023 O-RING (OUTER)O-RING (OUTER)
-
21500206 VALVE-AIR, COMPLETEVALVE-AIR, COMPLETE
-
31500306 VALVE, CHECK, NBR DURO A 90VALVE, CHECK, NBR DURO A 90
-
41500334 BEARING, W/P. S. GROOVEBEARING, W/P. S. GROOVE
-
51500302 EYELET-. 88W 1. 38TLG 808-05-002EYELET-. 88W 1. 38TLG 808-05-002
-
61500333 SHAFT, . 5X8. 35 TRAILINGSHAFT, . 5X8. 35 TRAILING
-
71500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
81500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
91500015 BUSHING, BACKUPBUSHING, BACKUP
-
101500016 NUT, LOCKNUT, LOCK
-
111500331 BODY, ASSY. P. S. (INNER)BODY, ASSY. P. S. (INNER)
-
121500332 BODY, ASSY. P. S. (OUTER)BODY, ASSY. P. S. (OUTER)
-
131500006 RING, PISTON FLOATINGRING, PISTON FLOATING
-
141500018 SCREWSCREW
-
141500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
141500187 PISTON-FLOATINGPISTON-FLOATING
-
151500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
161500311 SLEEVESLEEVE
-
171500327 SLEEVESLEEVE
-
181500307 BUSHING, . 35ILG, . 63TLGBUSHING, . 35ILG, . 63TLG
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500025 U-CUP-4300 URETH, 036-01-006U-CUP-4300 URETH, 036-01-006
-
211500024 WIPER, CLR (OUTER)WIPER, CLR (OUTER)
-
221500070 SCREWSCREW
-
231500071 BALLBALL
-
237041846 SHOCK, R/T, PPSSHOCK, R/T, PPS
