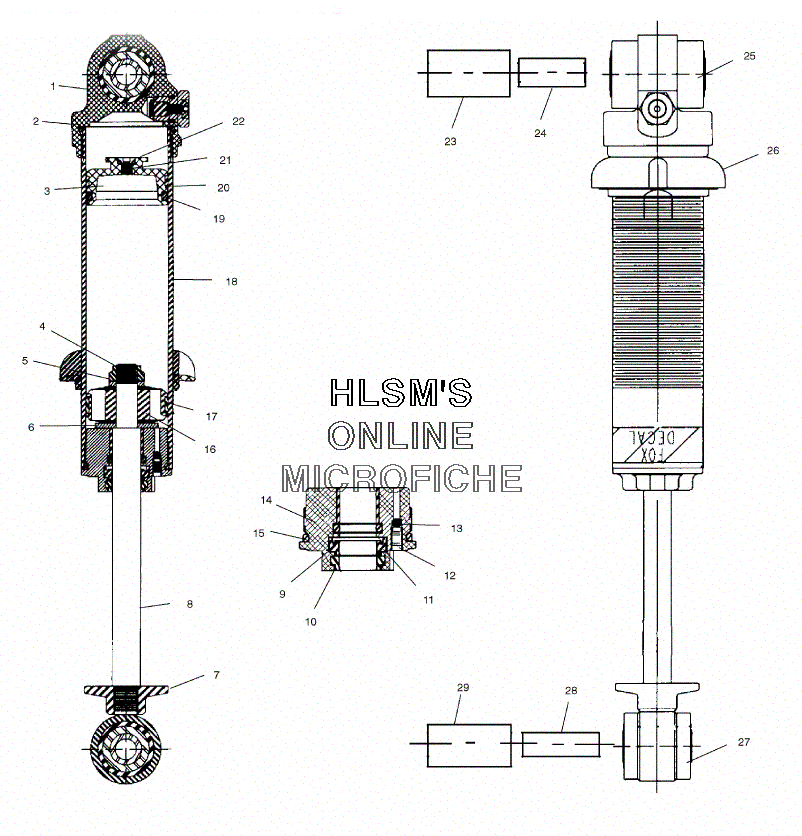

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
11500315 CAP, ASSY., BODYCAP, ASSY., BODY
-
21500108 O-RING (103W-1. 549ID)O-RING (103W-1. 549ID)
-
31500187 PISTON, FLOATINGPISTON, FLOATING
-
41500016 NUT, LOCKNUT, LOCK
-
51500015 BUSHING, BACKUPBUSHING, BACKUP
-
61500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
71500164 EYELET, BASEEYELET, BASE
-
81500321 SHAFT, . 498X6. 25 TRAILINGSHAFT, . 498X6. 25 TRAILING
-
91500266 U-CUP-4300 URETH, 036-01-006U-CUP-4300 URETH, 036-01-006
-
101500268 SEAL, WIPER URETHANESEAL, WIPER URETHANE
-
111500021 O-RING (INNER)O-RING (INNER)
-
121500070 SCREWSCREW
-
131500071 BALLBALL
-
141500186 BEARING, ASSEMBLYBEARING, ASSEMBLY
-
151500020 O-RING, 103W-1. 299IDO-RING, 103W-1. 299ID
-
162200618 VALV. PISTON KIT (FOX SHOCK)VALV. PISTON KIT (FOX SHOCK)
-
171500002 DAMPER, PISTONRINGDAMPER, PISTONRING
-
181500318 BODY, 6. 15 TLG, 4. 7 THDBODY, 6. 15 TLG, 4. 7 THD
-
191500003 O-RING, ENDCAPO-RING, ENDCAP
-
201500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
211500022 O-RING DRUM (OUTER)O-RING DRUM (OUTER)
-
221500018 SCREWSCREW
-
231500312 SLEEVESLEEVE
-
241500314 SLEEVESLEEVE
-
251500308 BUSHING, . 35ILG, . 82TLGBUSHING, . 35ILG, . 82TLG
-
261500323 RING, PRELOAD, AL. 1. 8 FLGRING, PRELOAD, AL. 1. 8 FLG
-
271500309 BUSHING, . 35ILG, . 595TLGBUSHING, . 35ILG, . 595TLG
-
281500313 SLEEVESLEEVE
-
291500310 SLEEVESLEEVE
-
297041847 SHOCK, TRACK (FRONT)SHOCK, TRACK (FRONT)
