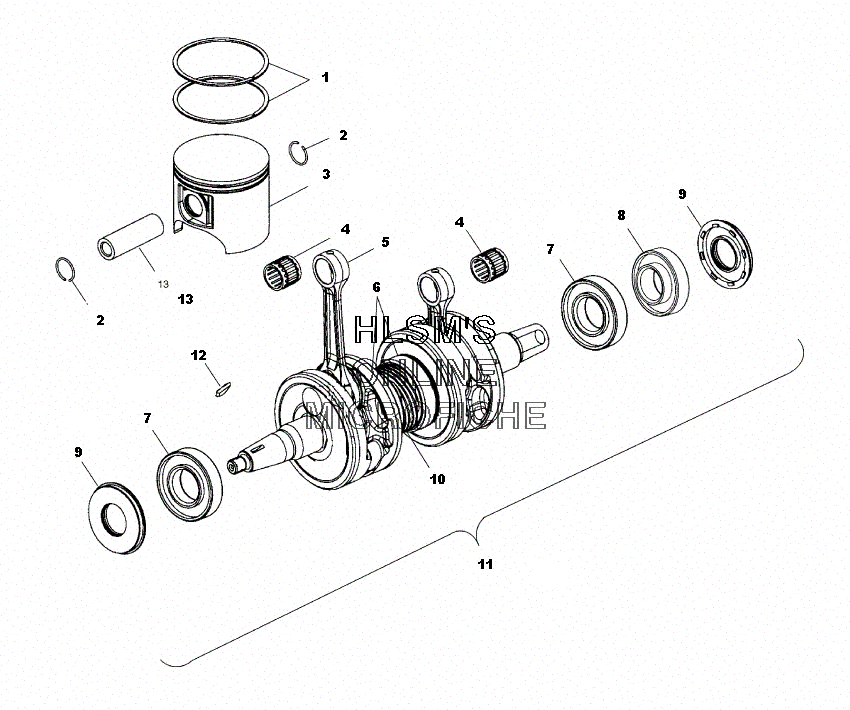

PISTON AND CRANKSHAFT для Polaris 600 XC SP EDGE (S00NP6ES) - 2000 года выпуска
-
№АртикулНазвание
-
12201256 PISTONRINGS KIT 1/2KEY, 77. 25 CKPISTONRINGS KIT 1/2KEY, 77. 25 CK
-
23022950 CIRCLIP, PISTON, 20MM.CIRCLIP, PISTON, 20MM.
-
32201559 PISTON, ASSY., 77MM (INCL. 1, 2, 13)PISTON, ASSY., 77MM (INCL. 1, 2, 13)
-
43552108 BEARINGBEARING
-
52201132 CONNECT. ROD KITCONNECT. ROD KIT
-
63513508 BEARING-BALL, 35X72X20, SL, KOYOBEARING-BALL, 35X72X20, SL, KOYO
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112201234 CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 6-10)CRANKSHAFT, 2CYL, SNO, MAPE KIT (INCL. 6-10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
