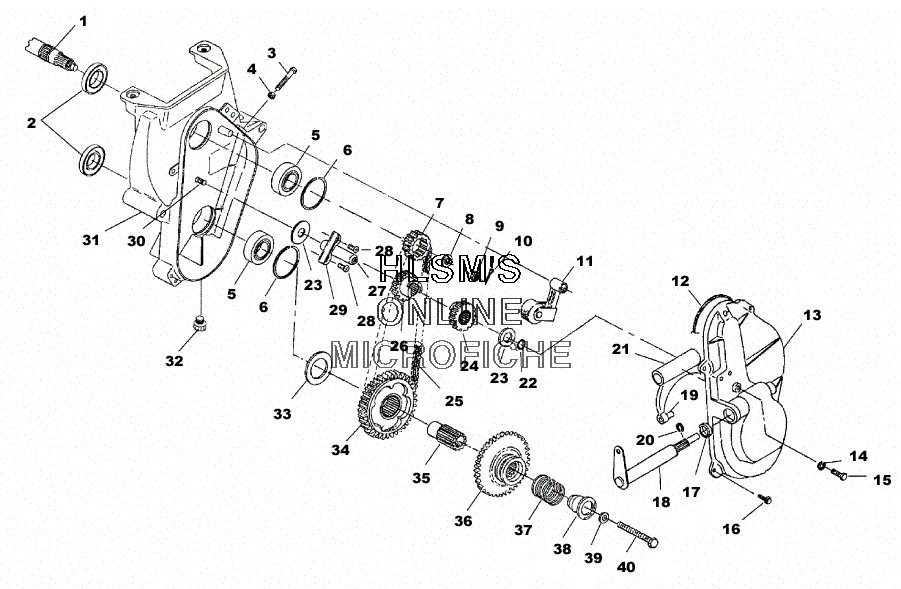

CHAINCASE ASSEMBLY для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска
-
№АртикулНазвание
-
23610030 SEAL, OILSEAL, OIL
-
37515551 SCREWSCREW
-
47542404 NUTNUT
-
53514309 BEARING, BALLBEARING, BALL
-
67718406 RING, RETAININGRING, RETAINING
-
73221095 SPROCKET SPLINE, (19 TEETH, 3/4W, HV, PM)SPROCKET SPLINE, (19 TEETH, 3/4W, HV, PM)
-
87571620 WASHER, SLOTTEDWASHER, SLOTTED
-
97542811 NUTNUT
-
107661203 PIN COTTERPIN COTTER
-
111332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
113553002 BEARINGBEARING
-
115630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
117558702 WASHER THRUSTWASHER THRUST
-
117662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
125410277 GASKET, CHAINCASEGASKET, CHAINCASE
-
135132159 COVER, CHAINCASE, REV, MACH, 6.625COVER, CHAINCASE, REV, MACH, 6.625
-
147558403 WASHER WROUGHTWASHER WROUGHT
-
157512492 SCREWSCREW
-
167512242 SCREWSCREW
-
173610029 SEAL, OILSEAL, OIL
-
181341221-067 SHAFT, SHIFT, (BLACK)SHAFT, SHIFT, (BLACK)
-
197661826 PIN, SHIFT FORKPIN, SHIFT FORK
-
207710415 RING, RETAINERRING, RETAINER
-
212200363 SHIFT FORK/SHAFT KIT, (INCL. 18, 19)SHIFT FORK/SHAFT KIT, (INCL. 18, 19)
-
215130805 FORK, SHIFTFORK, SHIFT
-
225410589 O-RINGO-RING
-
237555877 WASHER, THRUSTWASHER, THRUST
-
241341075 GEAR, SPUR PINIONGEAR, SPUR PINION
-
243554508 BEARING, NEEDLEBEARING, NEEDLE
-
253221113 CHAIN, (HYVO 66 P, 3/4W)CHAIN, (HYVO 66 P, 3/4W)
-
261341241 SPROCKET, PINIONSPROCKET, PINION
-
263554508 BEARING, NEEDLEBEARING, NEEDLE
-
275131770 SHAFT, PINION, W/WRENCH FLATSSHAFT, PINION, W/WRENCH FLATS
-
287512019 SCREWSCREW
-
295243162 BRACKET, CHAIN RETENTION, 7.05BRACKET, CHAIN RETENTION, 7.05
-
307515477 BOLTBOLT
-
315132158 CHAINCASE, MACH, 6.625 CDCHAINCASE, MACH, 6.625 CD
-
327052115 PLUGPLUG
-
337555871 WASHER, REVERSEWASHER, REVERSE
-
341341227 SPROCKET ASSY., (40 TEETH, REV, 3/4W, PM)SPROCKET ASSY., (40 TEETH, REV, 3/4W, PM)
-
355130720 COUPLER, DRIVECOUPLER, DRIVE
-
361341410 REVERSE GEAR ASSY.REVERSE GEAR ASSY.
-
377041887 SPRING, COMPRESSIONSPRING, COMPRESSION
-
385130727 RETAINER, DRIVE COUPLERRETAINER, DRIVE COUPLER
-
397552901 LOCK WASHERLOCK WASHER
-
407517581 SCREWSCREW
