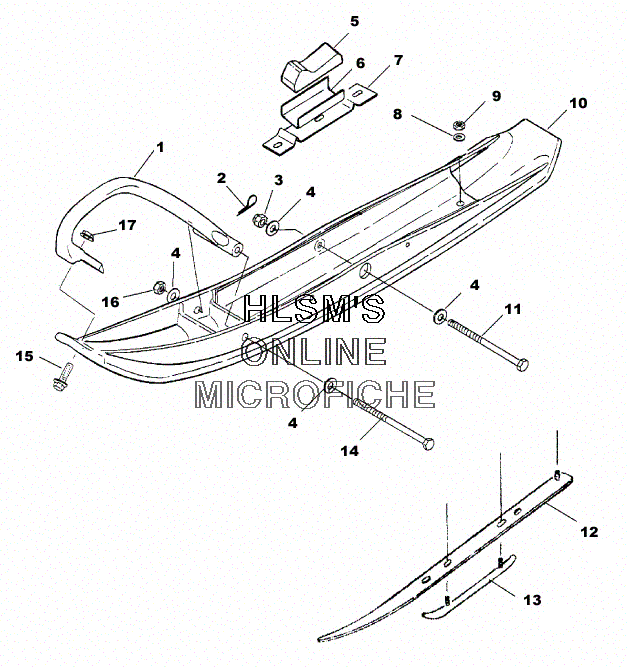

SKI ASSEMBLY для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска
-
№АртикулНазвание
-
15434165-070 TOE, PLASTIC SKI, (BLACK)TOE, PLASTIC SKI, (BLACK)
-
27661205 PIN, COTTERPIN, COTTER
-
37542438 NUT, CASTLENUT, CASTLE
-
47555832 WASHERWASHER
-
55412018 STOP, SKI, RUBBERSTOP, SKI, RUBBER
-
65243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
75241912-067 SUPPORT, SKI, RUBBER, (BLACK)SUPPORT, SKI, RUBBER, (BLACK)
-
87558302 WASHER, WROUGHTWASHER, WROUGHT
-
97542324 NUTNUT
-
101820821-070 CMP SKI BLANK ASSY., W/RK SDL, (BLACK)CMP SKI BLANK ASSY., W/RK SDL, (BLACK)
-
117512596 SCREWSCREW
-
121012748-067 PLATE, SKAG, (1.375 STUD), (BLACK)PLATE, SKAG, (1.375 STUD), (BLACK)
-
132872018 SKAG, EZ, 3'', COMP.SKI KIT, (PAIR)SKAG, EZ, 3'', COMP.SKI KIT, (PAIR)
-
147515514 BOLTBOLT
-
157515307 BOLTBOLT
-
167542439 NUT, NYLOKNUT, NYLOK
-
177542321 NUT LOCKNUT LOCK
